NCP1603D100R2
IC PFC CTLR CRM/DCM 58KHZ 16SOICManufacturer: onsemi
Categories: PFC (Power Factor Correction)
Quality Control: Learn More
The onsemi NCP1603D100R2 is a highly integrated Power Factor Correction (PFC) controller designed for efficient operation in Critical Conduction Mode (CRM) and Discontinuous Conduction Mode (DCM). This device features a high switching frequency of 58kHz and a low startup current of 17 µA, enabling rapid system initialization. Operating within a supply voltage range of 9V to 18V and across an industrial temperature range of -40°C to 125°C, it is suitable for demanding applications. The NCP1603D100R2 is housed in a 16-SOIC package, facilitating surface mounting for compact designs. Its advanced control capabilities make it a key component in power supplies for consumer electronics, industrial automation, and lighting systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

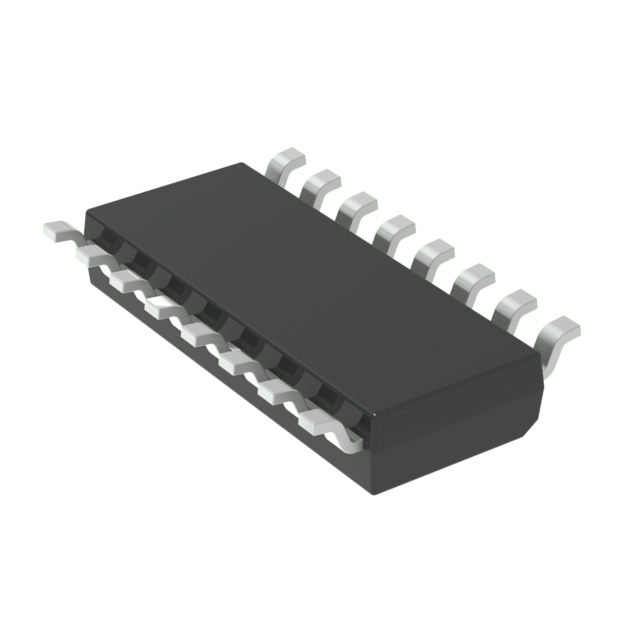

| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 9V ~ 18V |
| Frequency - Switching | 58kHz |
| Mode | Critical Conduction (CRM), Discontinuous Conduction (DCM) |
| Supplier Device Package | 16-SOIC |
| Current - Startup | 17 µA |
