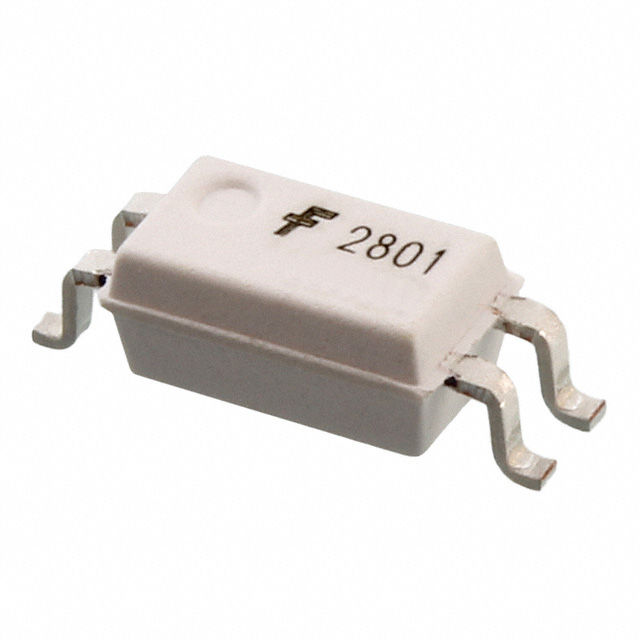

HMHA281
OPTOISO 3.75KV TRANSISTOR 4SMDManufacturer: onsemi
Categories: Optocouplers, Optoisolators
Quality Control: Learn More
Optoisolator Transistor Output 3750Vrms 1 Channel 4-Mini-Flat
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 4-SOIC (0.173"", 4.40mm Width) |
| Output Type | Transistor |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Voltage - Forward (Vf) (Typ) | 1.3V (Max) |
| Input Type | DC |
| Current - Output / Channel | 50mA |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Max) | 600% @ 5mA |
| Supplier Device Package | 4-Mini-Flat |
| Voltage - Output (Max) | 80V |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 3µs, 3µs |
| Number of Channels | 1 |
| Current - DC Forward (If) (Max) | 50 mA |
