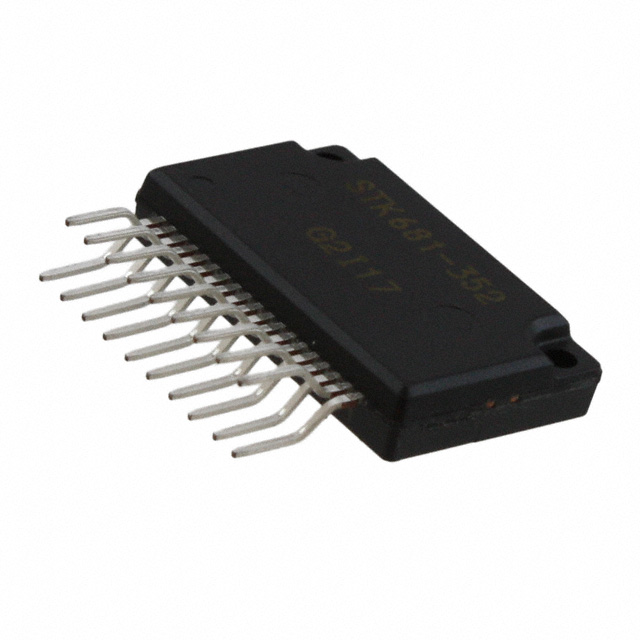

STK681-352-E
IC MOTOR DRIVER 0V-5.5V 19SIPManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi STK681-352-E is a power MOSFET motor driver designed for brushed DC applications. This fully integrated component combines control and power stages, offering a robust solution for motor control in demanding environments. Featuring a parallel Power MOSFET technology, it delivers a 4.6A output current with a load voltage range of 18V to 29V and a supply voltage range of 0V to 5.5V. The device utilizes a parallel interface for control and is housed in a 19-SIP package with formed leads, suitable for through-hole mounting. Its operational temperature range is -20°C to 105°C (TC). This motor driver is commonly employed in general-purpose applications across various industries including industrial automation and automotive systems where reliable motor control is paramount.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 19-SSIP Formed Leads |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 4.6A |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 105°C (TC) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 0V ~ 5.5V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 18V ~ 29V |
| Supplier Device Package | - |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
