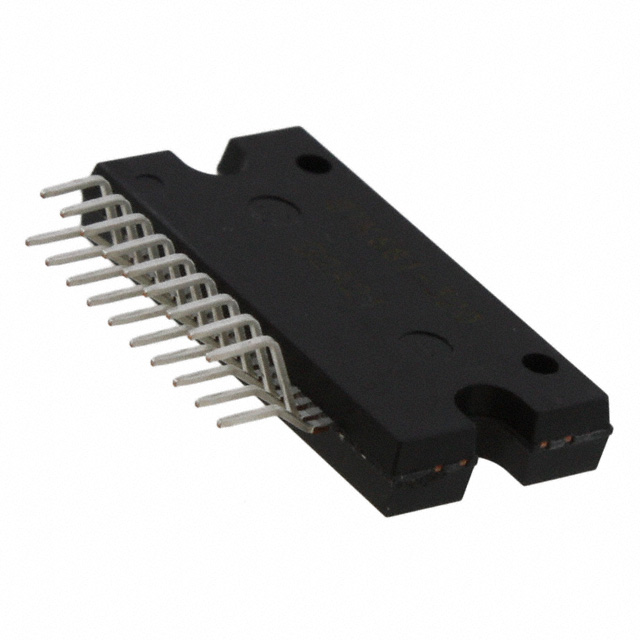

STK681-320
IC MOTOR DRIVER 4.75V-5.25VManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi STK681-320 is a high-performance motor driver featuring a fully integrated control and power stage. This component utilizes Power MOSFET technology to drive brushed DC motors with exceptional efficiency. The STK681-320 offers a robust output current capability of 5.2A and operates with a supply voltage range of 4.75V to 5.25V. Its output configuration is designed with two half-bridge stages, providing flexible control for various motor applications. The device is packaged in a 19-SSIP with formed leads, suitable for through-hole mounting and designed for demanding operational environments with an operating temperature of 150°C. This motor driver is commonly employed in general-purpose applications across industrial automation and automotive sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 19-SSIP Formed Leads |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 5.2A |
| Interface | Parallel |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Power MOSFET |
| Voltage - Load | 10V ~ 42V |
| Supplier Device Package | - |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
