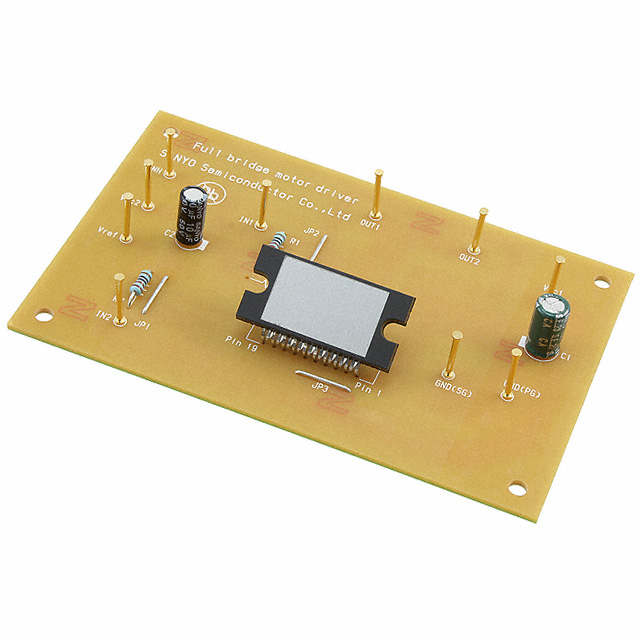

STK681-310
IC MOTOR DRIVER 4.75V-5.25VManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi STK681-310 is a highly integrated motor driver IC designed for efficient control of brushed DC motors. This device integrates both control logic and power stage MOSFETs and IGBTs in a parallel configuration, offering a robust solution for demanding applications. With a supply voltage range of 4.75V to 5.25V and a load voltage capability from 10V to 42V, it provides flexibility across various power requirements. The STK681-310 delivers an output current of up to 4.2A, supporting continuous operation. Its parallel interface simplifies integration into existing designs. This robust motor driver is commonly employed in industrial automation, automotive systems, and power tool applications where reliable motor control is critical. The component is supplied in a 19-SSIP package with formed leads, suitable for through-hole mounting, and operates at junction temperatures up to 150°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 19-SSIP Formed Leads |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 4.2A |
| Interface | Parallel |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Power MOSFET, IGBT |
| Voltage - Load | 10V ~ 42V |
| Supplier Device Package | - |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
Request a Quote
