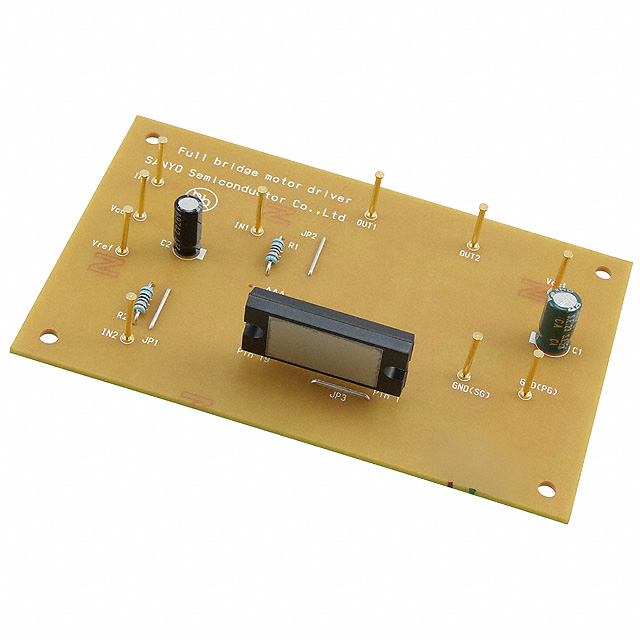

STK681-300
IC MOTOR DRIVER 4.75V-5.25VManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi STK681-300 is a highly integrated motor driver designed for brushed DC applications. This component combines control and power stages, utilizing Power MOSFET and IGBT technology for efficient power delivery. Featuring a parallel interface, the STK681-300 offers a robust solution for motor control in demanding environments. Its output configuration includes two half-bridges, capable of delivering up to 2.9A. The device operates with a supply voltage range of 4.75V to 5.25V and supports load voltages from 10V to 42V. The STK681-300 is suitable for general-purpose applications and can operate at junction temperatures up to 150°C. It is supplied in a 19-SSIP package with formed leads, offered in bulk packaging. This motor driver is commonly found in industrial automation and automotive systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 19-SSIP Formed Leads |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2.9A |
| Interface | Parallel |
| Operating Temperature | 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Power MOSFET, IGBT |
| Voltage - Load | 10V ~ 42V |
| Supplier Device Package | - |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
Request a Quote
