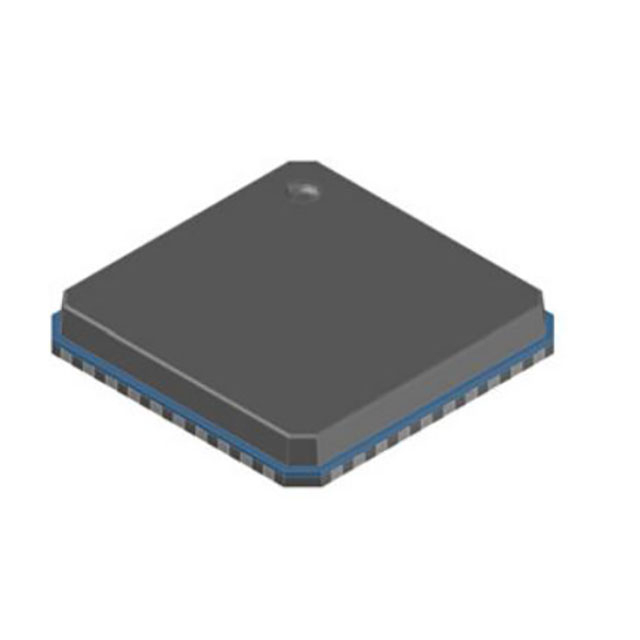

NCV7546MWTXG
AUTOMOTIVE DRIVERManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi NCV7546MWTXG is a bipolar motor driver featuring NMOS technology and PWM/SPI interface capabilities. This automotive-grade component is designed for brushed DC motor control, functioning as a speed controller. Its output configuration includes pre-drivers for six half bridges. The device operates within a load voltage range of 7V to 18V and a supply voltage of 4.5V to 5.5V, with an ambient temperature operating range of -40°C to 125°C. The NCV7546MWTXG is supplied in a 40-QFNW (6x6) package, mounted via surface mount technology, and delivered on tape and reel. This component is suitable for automotive applications requiring precise motor speed management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Controller - Speed |
| Current - Output | - |
| Interface | PWM, SPI |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (6) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Applications | - |
| Technology | NMOS |
| Voltage - Load | 7V ~ 18V |
| Supplier Device Package | 40-QFNW (6x6) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
