NCV7517BFTR2G
IC MOTOR DRVR 4.75V-5.25V 32LQFPManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
onsemi's FLEXMOS™ NCV7517BFTR2G is a highly integrated NMOS motor driver designed for automotive applications. This component functions as a controller for brushed DC motors, managing commutation and direction. It features both SPI and parallel interfaces for flexible system integration. The device is housed in a 32-LQFP package and is supplied on tape and reel for automated assembly. Its operating temperature range is -40°C to 125°C. The NCV7517BFTR2G offers six low-side pre-driver outputs and operates from a supply voltage of 4.75V to 5.25V. This motor driver is suitable for use in automotive control systems.
Additional Information
Series: FLEXMOS™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-LQFP |
| Mounting Type | Surface Mount |
| Function | Controller - Commutation, Direction Management |
| Current - Output | - |
| Interface | SPI, Parallel |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | Pre-Driver - Low Side (6) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | - |
| Technology | NMOS |
| Voltage - Load | - |
| Supplier Device Package | 32-LQFP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
| Grade | Automotive |
Request a Quote
Clients Also Buy
NCV7520MWTXG
IC GATE DRVR LOW-SIDE 32QFN

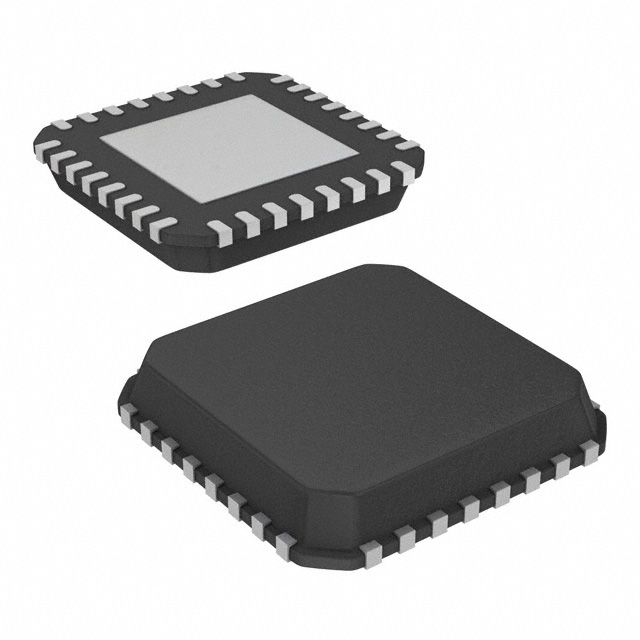

NCV7518MWATXG
