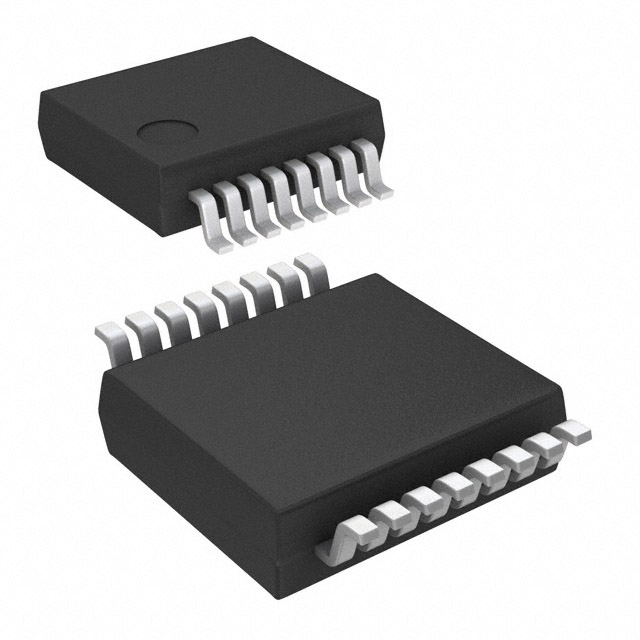

LV8860V-MPB-H
IC MOTOR DRIVER 6V-34V 16SSOPManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LV8860V-MPB-H is a Bi-CMOS parallel, PWM motor driver IC. This device features a fully integrated control and power stage, designed to drive brushed DC motors. The LV8860V-MPB-H operates across a load and supply voltage range of 6V to 34V, with an output current capability of 700mA. Its 16-SSOP package facilitates surface mounting, making it suitable for compact designs. The output stage is configured as two half-bridges. This component finds application in fan motor driver systems, contributing to efficient motor control in various industrial and automotive applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-LSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 700mA |
| Interface | Parallel, PWM |
| Operating Temperature | -40°C ~ 95°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 6V ~ 34V |
| Applications | Fan Motor Driver |
| Technology | Bi-CMOS |
| Voltage - Load | 6V ~ 34V |
| Supplier Device Package | 16-SSOP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
