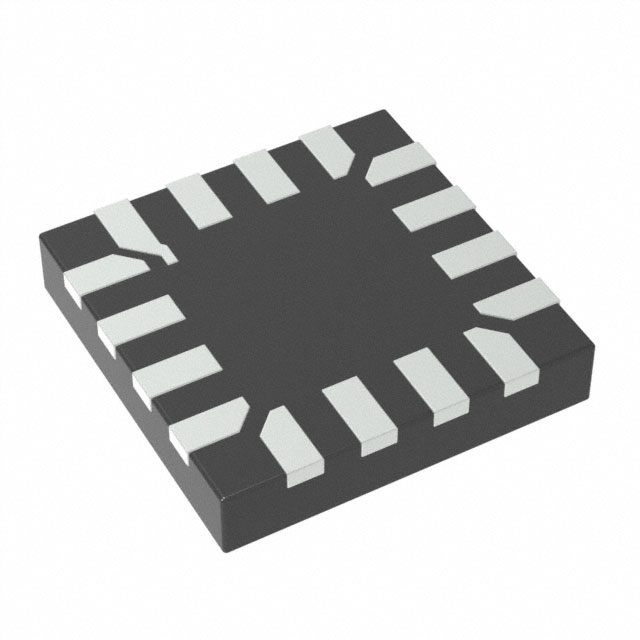

LV8806QA-MH
IC MOTOR DRIVER 2V-6V 16UQFNManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LV8806QA-MH is a Bi-CMOS PWM motor driver designed for Brushless DC (BLDC) motors. This fully integrated component combines control and power stages, offering a 700mA output current. It features three half-bridge outputs and operates from a 2V to 6V supply voltage, with a 2V to 6V load voltage range. The interface utilizes PWM for motor control. Supplied in a compact 16-UQFN (2.6x2.6) package, it is suitable for surface mount applications. The operating temperature range is -40°C to 95°C (TA). This device finds application in general-purpose motor control scenarios within consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFQFN |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 700mA |
| Interface | PWM |
| Operating Temperature | -40°C ~ 95°C (TA) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 2V ~ 6V |
| Applications | General Purpose |
| Technology | Bi-CMOS |
| Voltage - Load | 2V ~ 6V |
| Supplier Device Package | 16-UQFN (2.6x2.6) |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
