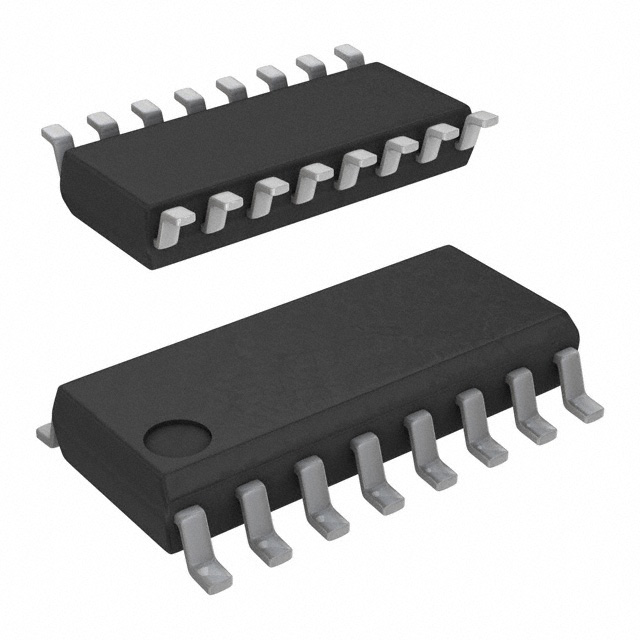

LV8800V-TLM-E
IC MOTOR DRIVER 2.2V-6V 16SSOPManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LV8800V-TLM-E is a Bi-CMOS motor driver designed for Brushless DC (BLDC) fan motor applications. This integrated, fully functional component incorporates both control and power stage circuitry. It operates from a supply voltage range of 2.2V to 6V, with a corresponding load voltage capability of 2.2V to 6V. The device offers a PWM interface for motor speed control and can deliver an output current of up to 700mA. Its output configuration features three half-bridges, providing versatile motor drive capabilities. Housed in a 16-SSOP package, it is suitable for surface mount applications. The operating temperature range for the LV8800V-TLM-E is -30°C to 95°C. This component is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-LSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 700mA |
| Interface | PWM |
| Operating Temperature | -30°C ~ 95°C (TA) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 2.2V ~ 6V |
| Applications | Fan Motor Driver |
| Technology | Bi-CMOS |
| Voltage - Load | 2.2V ~ 6V |
| Supplier Device Package | 16-SSOP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
