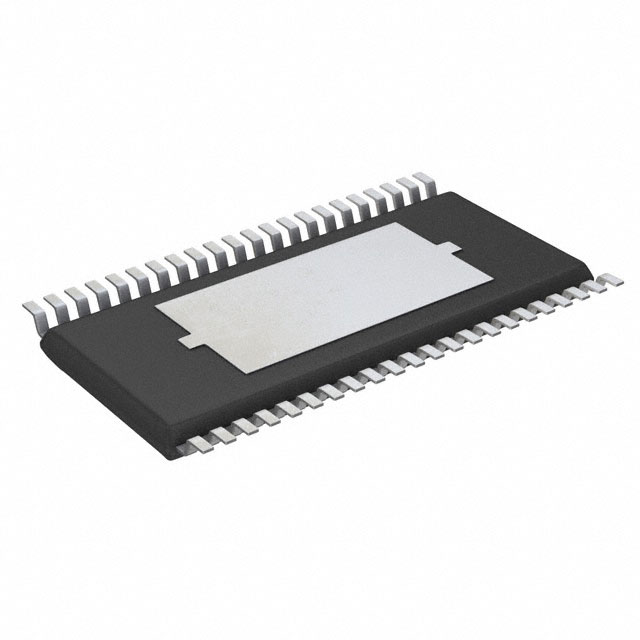

LV8740V-MPB-E
IC MTR DRV BIPOLR 0-5.5V 44SSOPJManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LV8740V-MPB-E is a bipolar motor driver featuring a fully integrated control and power stage. This BiCDMOS device operates with a supply voltage range of 0V to 5.5V and a load voltage capability from 9V to 35V. It offers a parallel interface for control and supports brushed DC and bipolar stepper motors, with step resolutions of 1, 1/2, and 1/4. The output configuration includes four half-bridge drivers, capable of delivering up to 2.5A of output current. Packaged in a 44-SSOPJ (44-LSSOP), this surface mount component is suitable for applications in general-purpose motor control. It operates within an ambient temperature range of -30°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 44-LSSOP (0.220"", 5.60mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2.5A |
| Interface | Parallel |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 0V ~ 5.5V |
| Applications | General Purpose |
| Technology | BiCDMOS |
| Voltage - Load | 9V ~ 35V |
| Supplier Device Package | 44-SSOPJ |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | 1, 1/2, 1/4 |
