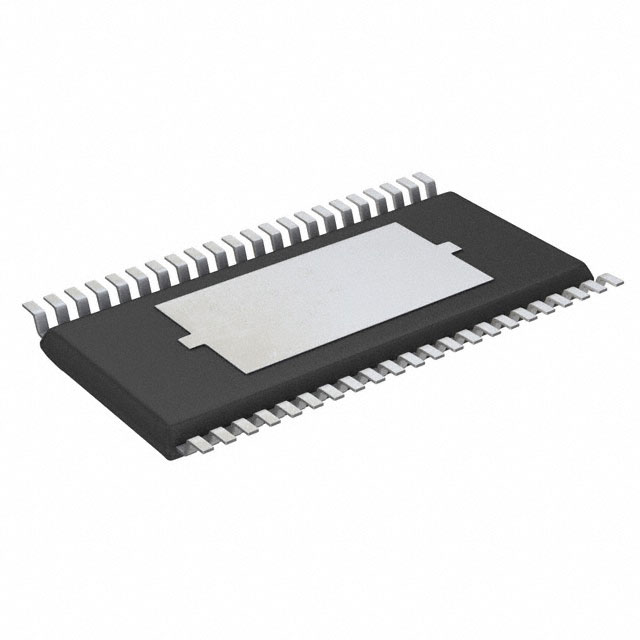

LV8112VB-AH
IC MOTOR DRIVER 10V-35V 44SSOPKManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LV8112VB-AH is a Bi-CMOS integrated motor driver designed for demanding applications. This component features a fully integrated control and power stage, enabling efficient operation of Brushless DC (BLDC) motors. With a parallel interface and a voltage range of 10V to 35V for both supply and load, it is suitable for high-performance systems. The output stage provides three half-bridge configurations, capable of delivering up to 2.5A. Packaged in a 44-SSOPK-EP with an exposed pad, this surface-mount device is optimized for thermal management. The operating temperature range of -25°C to 150°C (TJ) makes it robust for various environments. Commonly utilized in applications such as polygonal mirror drives, the LV8112VB-AH offers a reliable solution for precise motor control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-LSSOP (0.220"", 5.60mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 2.5A |
| Interface | Parallel |
| Operating Temperature | -25°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (3) |
| Voltage - Supply | 10V ~ 35V |
| Applications | Polygonal Mirror |
| Technology | Bi-CMOS |
| Voltage - Load | 10V ~ 35V |
| Supplier Device Package | 44-SSOPK-EP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
