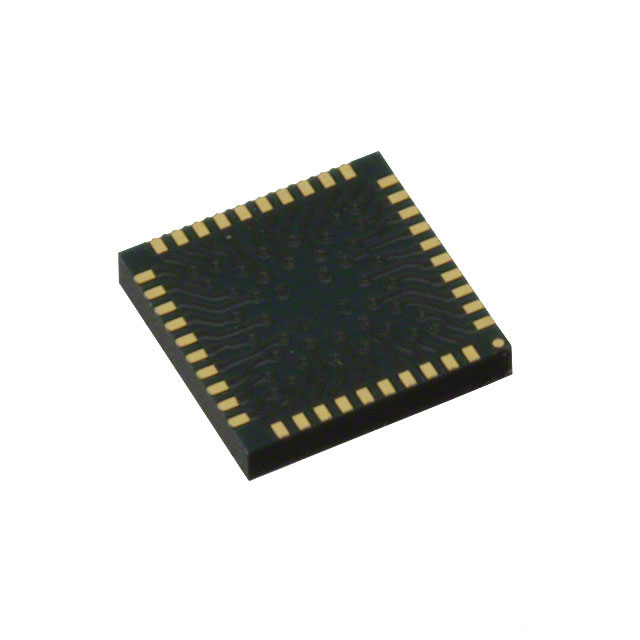

LV8044LP-TLM-E
IC MTR DRVR BIPLR 2.7-5.5V 40QLPManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LV8044LP-TLM-E is a Bi-CMOS bipolar stepper motor driver IC designed for precise control of brushed DC and bipolar stepper motors. This component features a serial interface for simplified communication and provides a fully integrated solution with both control and power stages. Its output configuration includes 12 half-bridge drivers, capable of delivering up to 400mA per channel. The device operates within a voltage range of 2.7V to 5.5V for both load and supply, making it suitable for a variety of low-voltage applications. Packaged in a 40-VQLP (5x5) format and supplied on tape and reel, the LV8044LP-TLM-E is engineered for surface mounting. Its robust design and capabilities find application in industries such as camera systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-VFQFN |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 400mA |
| Interface | Serial |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (12) |
| Voltage - Supply | 2.7V ~ 5.5V |
| Applications | Camera |
| Technology | Bi-CMOS |
| Voltage - Load | 2.7V ~ 5.5V |
| Supplier Device Package | 40-VQLP (5x5) |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
