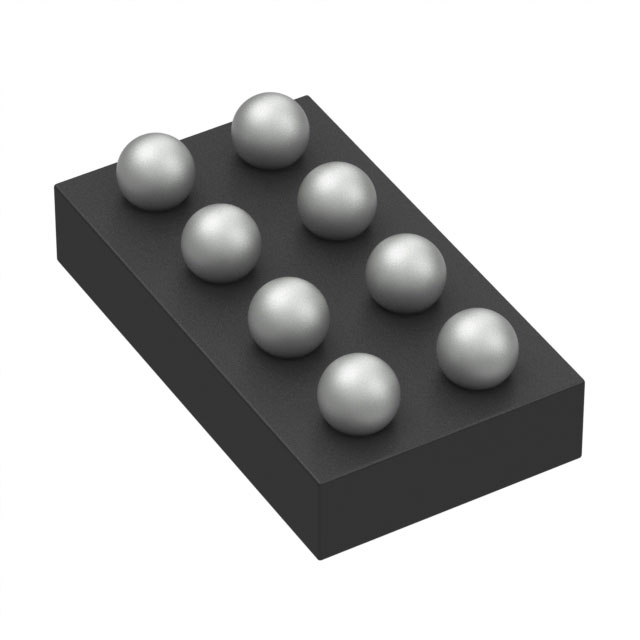

LC898301AXA-MH
IC MOTOR DRIVER 3V-5.5V 8WLCSPManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LC898301AXA-MH is a CMOS motor driver designed for LRA motors. This compact 8-WLCSP (0.78x1.58) device features an I2C interface for control and offers a fully integrated control and power stage. It operates within a supply voltage range of 3V to 5.5V and a load voltage range of 0V to 5.5V, with an output current capability of 200mA. The LC898301AXA-MH utilizes a half-bridge output configuration and is suitable for surface mount applications. This component is commonly found in haptic feedback systems. It is supplied in Tape & Reel (TR) packaging and operates within an ambient temperature range of -30°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 200mA |
| Interface | I2C |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 3V ~ 5.5V |
| Applications | Haptic Feedback |
| Technology | CMOS |
| Voltage - Load | 0V ~ 5.5V |
| Supplier Device Package | 8-WLCSP (0.78x1.58) |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | LRA |
| Step Resolution | - |
