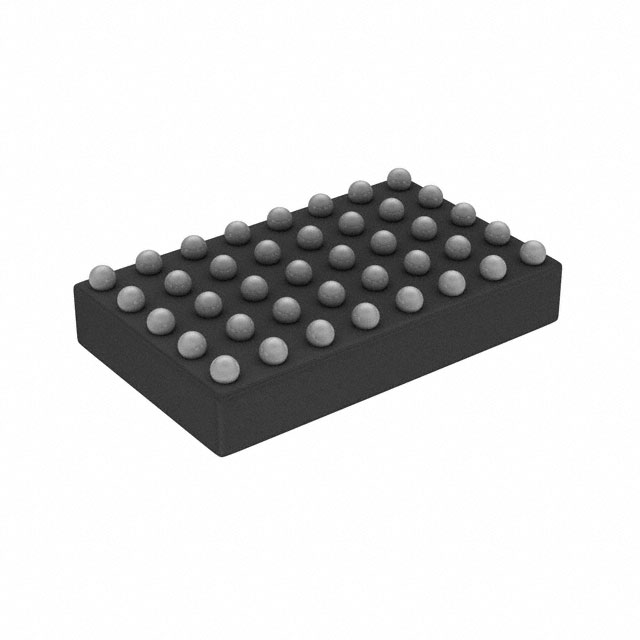

LC898121XA-MH
IC MOTOR DRVR 2.6V-3.6V 40WLCSPManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LC898121XA-MH is a CMOS motor driver featuring I2C and SPI interfaces. This highly integrated component combines control and power stages, providing a robust solution for demanding applications. It supports a load voltage range of 2.6V to 3.6V and a supply voltage from 2.6V to 5.5V, with an output current capability of 300mA. The device is packaged in a compact 40-WLCSP (2.44x3.94) format, suitable for surface mount applications. Its output configuration includes four half-bridge drivers, enabling versatile motor control. This component is commonly utilized in image stabilization systems within the consumer electronics and imaging industries. The LC898121XA-MH is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 40-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 300mA |
| Interface | I2C, SPI |
| Operating Temperature | - |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 2.6V ~ 5.5V |
| Applications | Image Stabilization |
| Technology | CMOS |
| Voltage - Load | 2.6V ~ 3.6V |
| Supplier Device Package | 40-WLCSP (2.44x3.94) |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | - |
| Step Resolution | - |
