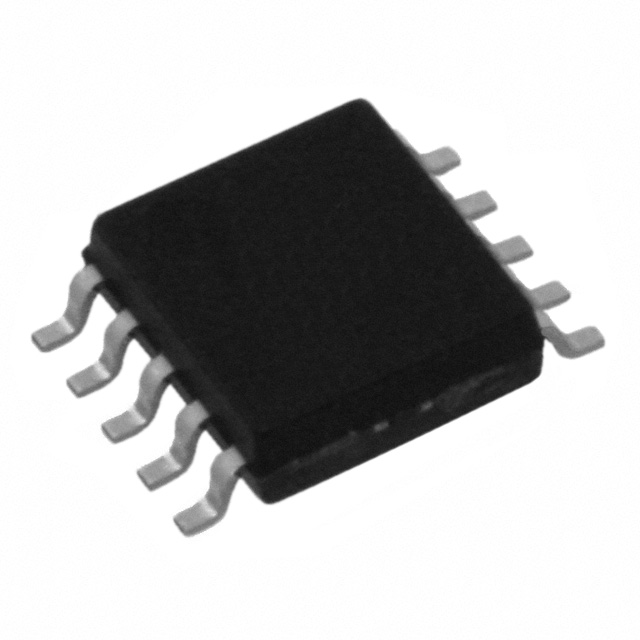

LB1848MC-AH
IC MTR DRV BIPLR 2.5-7.5V 10MFPSManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LB1848MC-AH is a bipolar motor driver featuring a fully integrated control and power stage. This device operates with a voltage range of 2.5V to 7.5V for both supply and load, delivering up to 800mA of output current. The LB1848MC-AH utilizes a parallel interface for control signals. Its output configuration comprises four half-bridge drivers, making it suitable for driving bipolar stepper motors. Packaged in a 10-MFPS (10-SOP) format for surface mounting, this component is designed for general-purpose applications in industries such as consumer electronics and industrial automation. The operating temperature range is -20°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 800mA |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 2.5V ~ 7.5V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 2.5V ~ 7.5V |
| Supplier Device Package | 10-MFPS |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | - |
