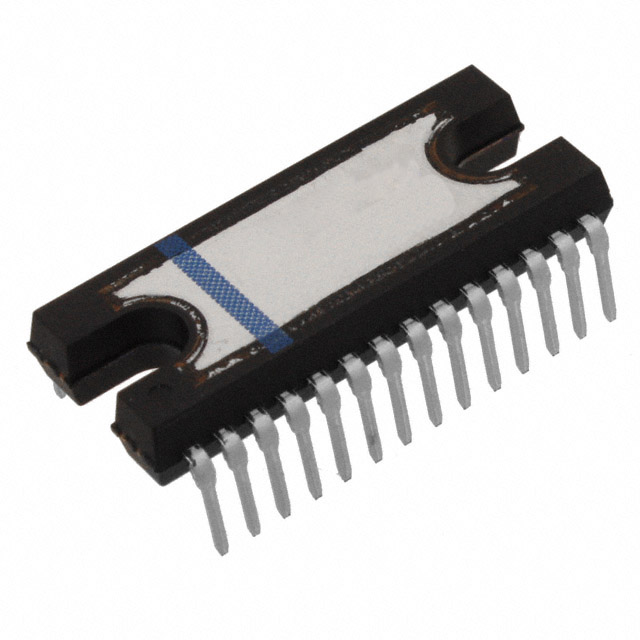

LB1847-E
IC MOTOR DRIVER BIPOLAR 28HDIPManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LB1847-E is a bipolar stepper motor driver designed for robust performance in demanding applications. This through-hole component features a 28-HDIP package with an exposed pad for enhanced thermal management. It integrates both control and power stages, offering a fully functional driver solution. The LB1847-E supports bipolar stepper motors and provides a parallel interface for control signals. Key specifications include a load voltage range of 10V to 45V and a supply voltage of 4.75V to 5.25V. The device delivers an output current of 1.5A and is configured with four half-bridge outputs. Operating within a temperature range of -20°C to 85°C, this component is commonly utilized in industrial automation and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 28-SDIP (0.500"", 12.70mm) Exposed Pad |
| Mounting Type | Through Hole |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1.5A |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Applications | General Purpose |
| Technology | Bipolar |
| Voltage - Load | 10V ~ 45V |
| Supplier Device Package | 28-HDIP |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Step Resolution | - |
