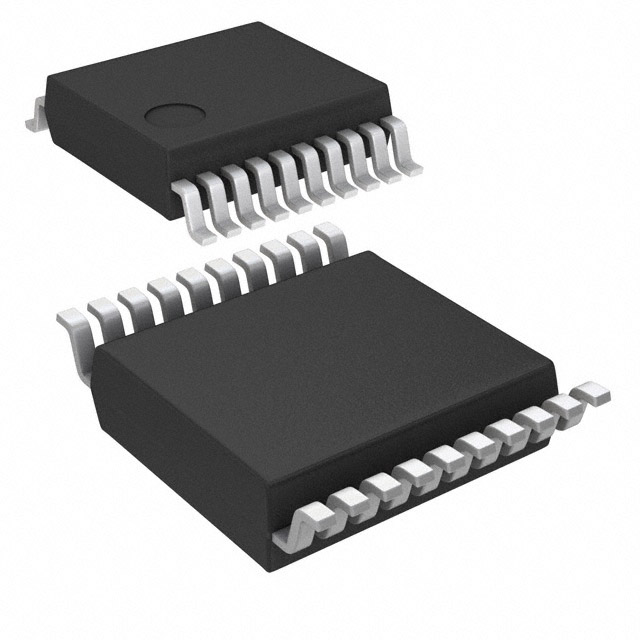

LB11967V-TLM-E
IC MOTOR DRIVER 6V-16V 20SSOPManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LB11967V-TLM-E is a motor driver designed for Brushless DC (BLDC) applications. This component functions as a speed controller utilizing Pulse Width Modulation (PWM) for interface. It features a pre-driver configuration with two half-bridge outputs. The device operates within a supply voltage range of 6V to 16V and is housed in a 20-SSOP package suitable for surface mounting. The operating temperature range for the LB11967V-TLM-E is -30°C to 95°C. This motor driver is commonly employed in fan controller applications across various industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-LSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Function | Controller - Speed |
| Current - Output | - |
| Interface | PWM |
| Operating Temperature | -30°C ~ 95°C (TA) |
| Output Configuration | Pre-Driver - Half Bridge (2) |
| Voltage - Supply | 6V ~ 16V |
| Applications | Fan Controller |
| Technology | - |
| Voltage - Load | - |
| Supplier Device Package | 20-SSOP |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Step Resolution | - |
Request a Quote
Clients Also Buy

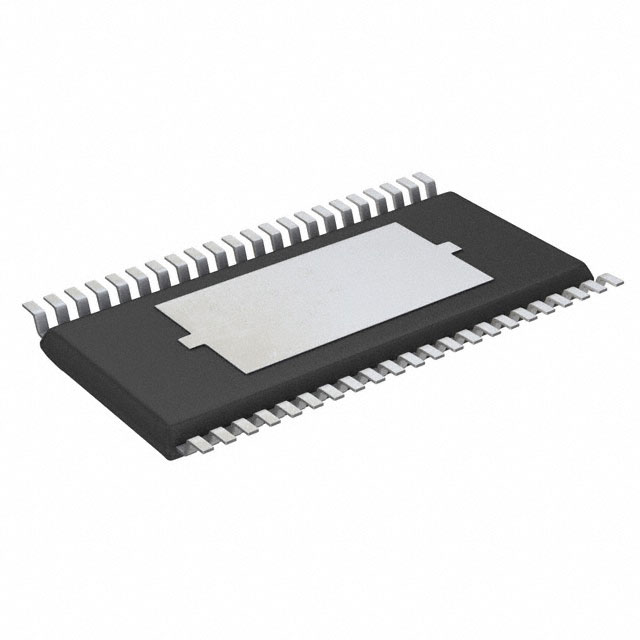

LV8746V-TLM-E
