LA6565-TE-L-E

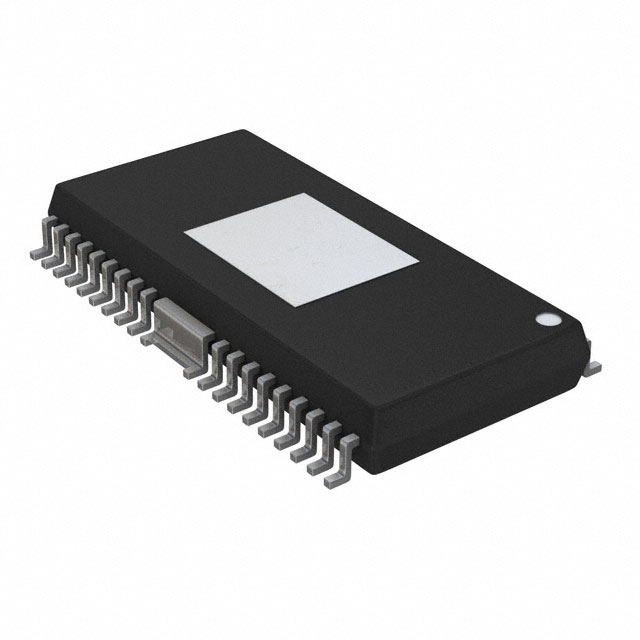

IC MOTOR DRVR 5.6V-13V 36HSOP-RManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LA6565-TE-L-E is a bipolar motor driver designed for brushed DC applications. This fully integrated component combines control and power stages, offering a parallel interface for seamless integration into system designs. Operating within a voltage range of 5.6V to 13V, both for the load and the supply, it delivers up to 1A of output current. The device features a half-bridge output configuration, with ten such configurations available for managing motor drive. Packaged in a 36-HSOP-R with exposed pad and heat tabs for enhanced thermal performance, it is supplied on tape and reel. This motor driver is suitable for applications in media players, operating reliably across a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-SOP (0.311"", 7.90mm Width) Exposed Pad + 2 Heat Tabs |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1A |
| Interface | Parallel |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (10) |
| Voltage - Supply | 5.6V ~ 13V |
| Applications | Media Player |
| Technology | Bipolar |
| Voltage - Load | 5.6V ~ 13V |
| Supplier Device Package | 36-HSOP-R |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Step Resolution | - |
