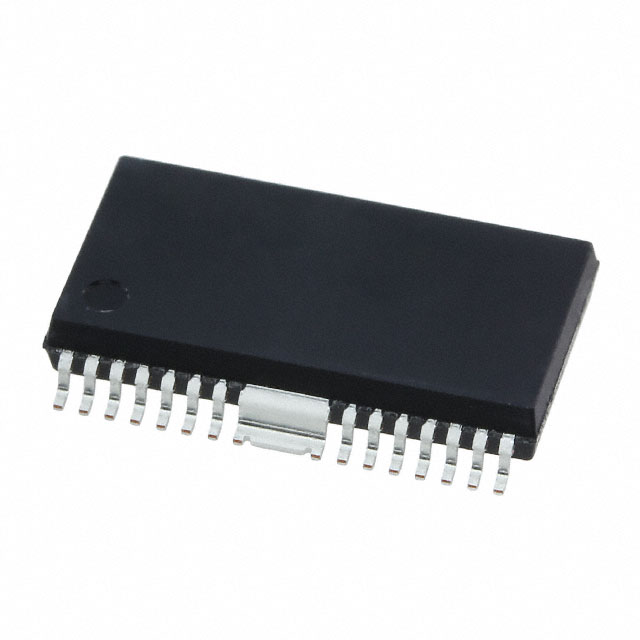

LA6242H-TE-L-E
IC MOTOR DRIVER 5V-13V 28HSOPManufacturer: onsemi
Categories: Motor Drivers, Controllers
Quality Control: Learn More
The onsemi LA6242H-TE-L-E is a bipolar motor driver featuring an integrated control and power stage. This component is designed for surface-mount applications and is supplied in a 28-HSOP-HC package, presented on tape and reel. It offers four half-bridge output configurations, capable of driving motors with a voltage range of 5V to 13V. The device operates with an ON/OFF interface and can deliver up to 1A of output current. Its operating temperature range is from -40°C to 85°C (TA). This motor driver is utilized in applications such as media players.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOP (0.311"", 7.90mm Width) Exposed Pad + 2 Heat Tabs |
| Mounting Type | Surface Mount |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Current - Output | 1A |
| Interface | ON/OFF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Half Bridge (4) |
| Voltage - Supply | 5V ~ 13V |
| Applications | Media Player |
| Technology | Bipolar |
| Voltage - Load | 5V ~ 13V |
| Supplier Device Package | 28-HSOP-HC |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | - |
| Step Resolution | - |
