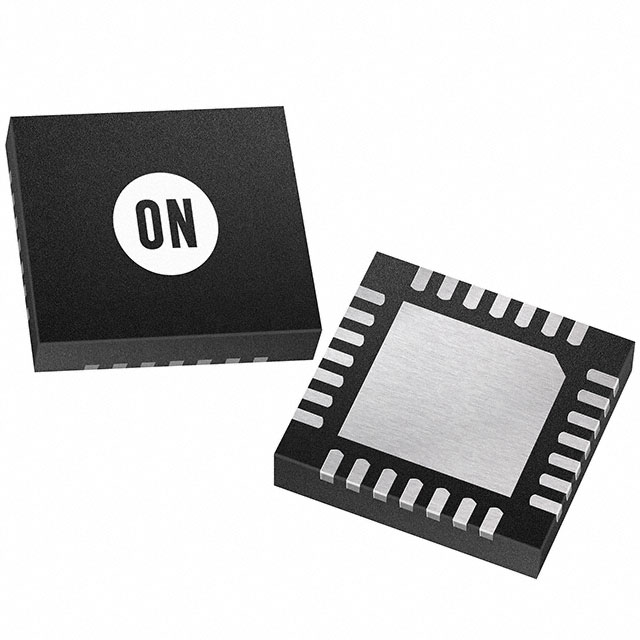

AX8052F100-2-TA05
IC MCU 8BIT 64KB FLASH 28QFNManufacturer: onsemi
Categories: Microcontrollers
Quality Control: Learn More
The onsemi AX8052F100-2-TA05 is an 8-bit microcontroller featuring a 20 MIPS 8052 core. This device integrates 64KB of FLASH program memory and 8.25KB of RAM. Connectivity options include SPI and UART/USART. It is equipped with an 8x10b Analog-to-Digital converter and peripherals such as Brown-out Detect/Reset, DMA, POR, PWM, and WDT. Mounting is via surface mount in a 28-QFN (5x5) package. Operating voltage ranges from 1.8V to 3.6V with an operating temperature of -40°C to 85°C. This component is suitable for applications in industrial automation and consumer electronics. Packaging is supplied on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Speed | 20 MIPS |
| Program Memory Size | 64KB (64K x 8) |
| RAM Size | 8.25K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | 8052 |
| Data Converters | A/D 8x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Supplier Device Package | 28-QFN (5x5) |
| Number of I/O | 24 |
| Programmable | Not Verified |
