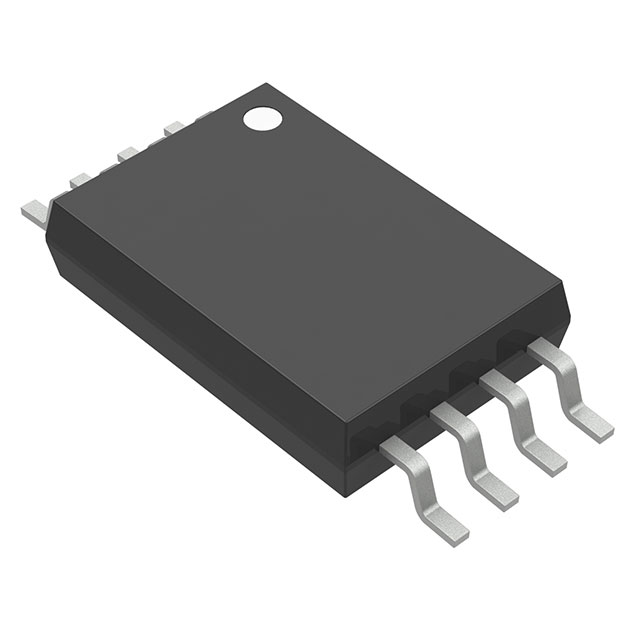

CAV24C02YE-GT3
IC EEPROM 2KBIT I2C 8TSSOPManufacturer: onsemi
Categories: Memory
Quality Control: Learn More
The onsemi CAV24C02YE-GT3 is a 2Kbit non-volatile EEPROM memory component with an I2C serial interface. It features a fast 400 kHz clock frequency and a 900 ns access time, organized as 256 x 8 bits. This device operates over a wide voltage range of 2.5V to 5.5V and is specified for an extended operating temperature range of -40°C to 125°C. The CAV24C02YE-GT3 is supplied in an 8-TSSOP package suitable for surface mounting. It is AEC-Q100 qualified, making it suitable for automotive applications. The write cycle time for a word or page is 5ms.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Memory Size | 2Kbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Technology | EEPROM |
| Clock Frequency | 400 kHz |
| Memory Format | EEPROM |
| Supplier Device Package | 8-TSSOP |
| Grade | Automotive |
| Write Cycle Time - Word, Page | 5ms |
| Memory Interface | I2C |
| Access Time | 900 ns |
| Memory Organization | 256 x 8 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
