H11N2SR2VM

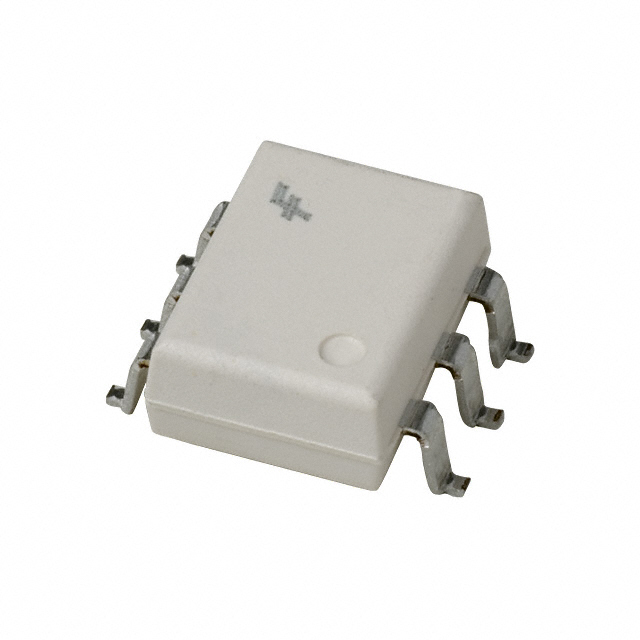

OPTOISO 4.17KV OPN COLL 6SMDManufacturer: onsemi
Categories: Logic Output Optoisolators
Quality Control: Learn More
The onsemi H11N2SR2VM is a logic output optoisolator designed for high-speed signal isolation. This single-channel device features an open collector output and a data rate up to 5MHz, facilitating efficient signal transfer in demanding applications. With an isolation voltage of 4170Vrms and a CMTI specification, it ensures robust performance in noisy environments. The H11N2SR2VM operates with a supply voltage range of 4V to 15V and supports a maximum DC forward current of 30mA. Its typical forward voltage is 1.4V, and it provides an output current of 50mA per channel. The device's propagation delay is a maximum of 330ns for both tpLH and tpHL, with typical rise and fall times of 7.5ns and 12ns respectively. Packaged in a 6-SMD Gull Wing configuration and supplied on tape and reel, the H11N2SR2VM is suitable for surface mount applications across various industrial sectors.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, Gull Wing |
| Output Type | Open Collector |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4V ~ 15V |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Data Rate | 5MHz |
| Input Type | DC |
| Voltage - Isolation | 4170Vrms |
| Current - DC Forward (If) (Max) | 30mA |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 6-SMD |
| Rise / Fall Time (Typ) | 7.5ns, 12ns |
| Common Mode Transient Immunity (Min) | - |
| Propagation Delay tpLH / tpHL (Max) | 330ns, 330ns |
| Number of Channels | 1 |
| Current - Output / Channel | 50 mA |
