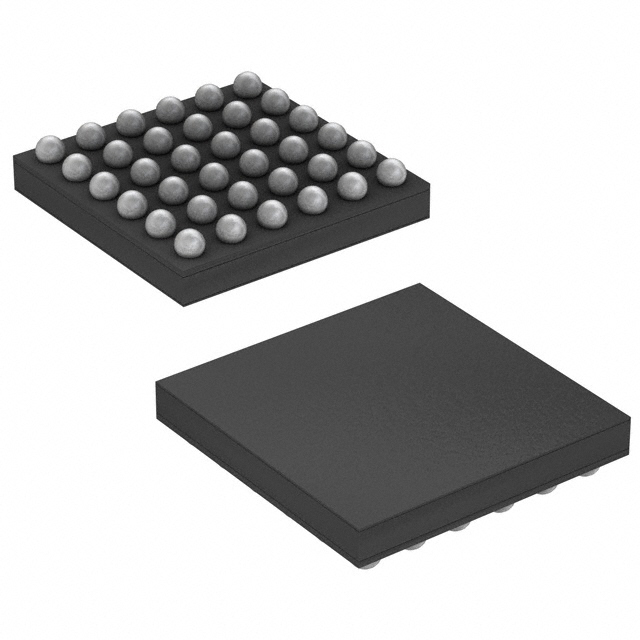

NCP6925AFCT1G
IC REG 7OUT BCK/LNR SYNC 36WLCSPManufacturer: onsemi
Categories: Linear + Switching
Quality Control: Learn More
The onsemi NCP6925AFCT1G is a multi-output power management IC featuring a combination of synchronous buck and linear (LDO) regulators. This device integrates two synchronous buck converters and five LDO regulators, providing a versatile solution for complex power distribution. The synchronous buck outputs operate at switching frequencies between 2.7MHz and 3.3MHz, offering efficient step-down conversion. The device supports a supply voltage range of 1.7V to 5.5V. The NCP6925AFCT1G includes sequencing capabilities, essential for modern power architectures. Packaged in a compact 36-WLCSP (2.36x2.36) format for surface mounting, this component is suitable for applications in consumer electronics and mobile devices where space and power efficiency are critical. The output capabilities include two 1A outputs and five lower current outputs, with adjustable voltage ranges.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.7V ~ 5.5V |
| Frequency - Switching | 2.7MHz ~ 3.3MHz |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (5) |
| Supplier Device Package | 36-WLCSP (2.36x2.36) |
| Voltage/Current - Output 1 | 0.6V ~ 3.3V, 1A |
| Voltage/Current - Output 2 | 0.6V ~ 3.3V, 1A |
| Voltage/Current - Output 3 | 0.8V ~ 3.5V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | Yes |
| Number of Outputs | 7 |
