NCP1526MUTXG
IC REG DL BUCK/LNR SYNC 10UDFNManufacturer: onsemi
Categories: Linear + Switching
Quality Control: Learn More
The onsemi NCP1526MUTXG is a dual-output power management IC featuring one synchronous step-down switching regulator and one linear regulator. This component offers a 3MHz switching frequency for efficient power conversion. Output 1 provides 1.2V at 400mA, while Output 2 delivers 2.8V at 150mA. Designed for surface-mount applications, it is supplied in a 10-UDFN (3x3) package on tape and reel. The operating voltage range is 2.7V to 5.2V, with an operating temperature range of -40°C to 85°C. This device is suitable for applications in consumer electronics and industrial systems requiring compact and efficient power solutions.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

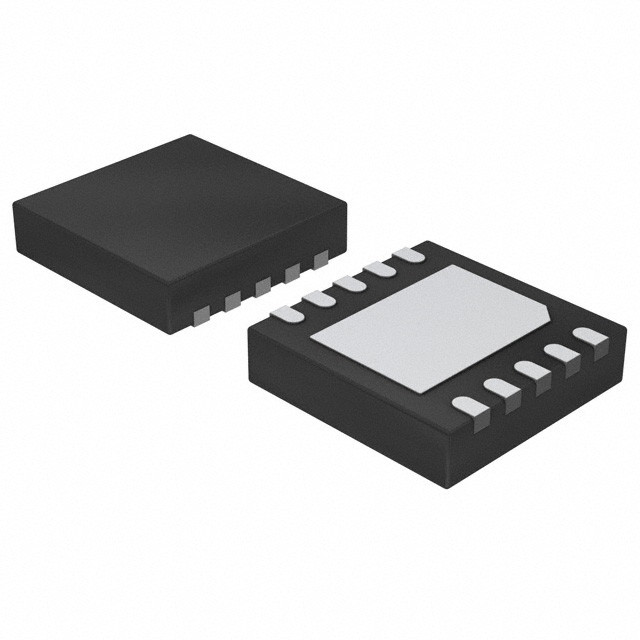

| Package / Case | 10-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 5.2V |
| Frequency - Switching | 3MHz |
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) |
| Supplier Device Package | 10-UDFN (3x3) |
| Voltage/Current - Output 1 | 1.2V, 400mA |
| Voltage/Current - Output 2 | 2.8V, 150mA |
| Voltage/Current - Output 3 | - |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 2 |
