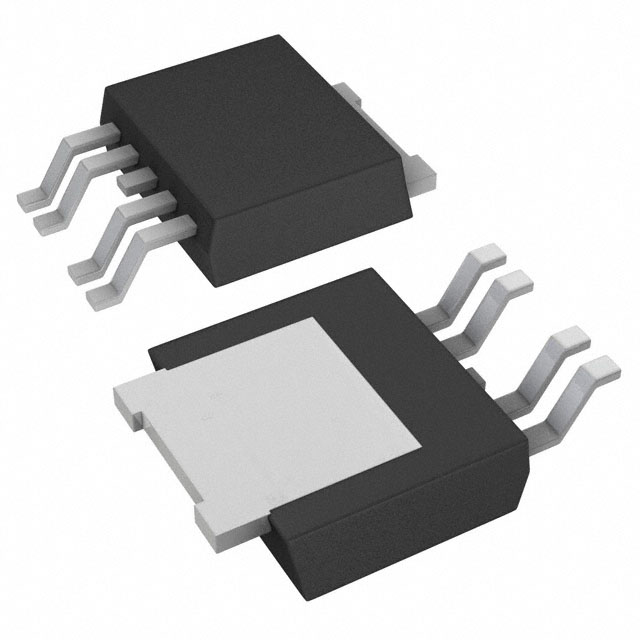

NCV87722DT50RKG
IC REG LINEAR 5V 350MA DPAK-5Manufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCV87722DT50RKG is a positive fixed output linear voltage regulator designed for automotive applications. This AEC-Q100 qualified device offers a stable 5V output with a maximum current capability of 350mA. The regulator features an input voltage range up to 40V and a low quiescent current of 29µA. Protection mechanisms include over current, over temperature, and reverse polarity. With a high power supply rejection ratio (PSRR) of 60dB at 100Hz, it is suitable for noise-sensitive automotive systems. The NCV87722DT50RKG is supplied in a DPAK-5 surface mount package, facilitating integration into compact designs. Its operating temperature range is -40°C to 150°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 350mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 29 µA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | DPAK-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable, Reset |
| Grade | Automotive |
| PSRR | 60dB (100Hz) |
| Voltage Dropout (Max) | 0.875V @ 350mA |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Current - Supply (Max) | 30 µA |
| Qualification | AEC-Q100 |
