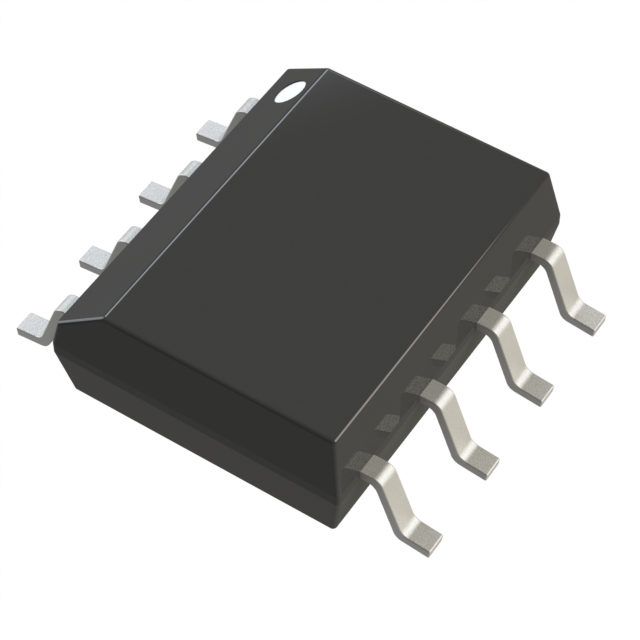

NCV8508PD50G
IC REG LINEAR 5V 250MA 8SOICManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCV8508PD50G is a fixed 5V positive linear voltage regulator IC. This component delivers a stable output current of 250mA with a quiescent current of 150µA. Designed for automotive applications, it meets AEC-Q100 qualification standards and operates within a temperature range of -40°C to 125°C. The device features an input voltage capability of up to 45V and a dropout voltage of 0.9V at 150mA. Its 8-SOIC-EP package facilitates surface mounting. Integrated control features include enable, reset, and watchdog functionalities, along with over-temperature and short-circuit protection. This regulator is suitable for power management in automotive systems and industrial applications requiring reliable voltage regulation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 250mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 150 µA |
| Voltage - Input (Max) | 45V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-SOIC-EP |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Enable, Reset, Watchdog |
| Grade | Automotive |
| PSRR | - |
| Voltage Dropout (Max) | 0.9V @ 150mA |
| Protection Features | Over Temperature, Short Circuit |
| Qualification | AEC-Q100 |
