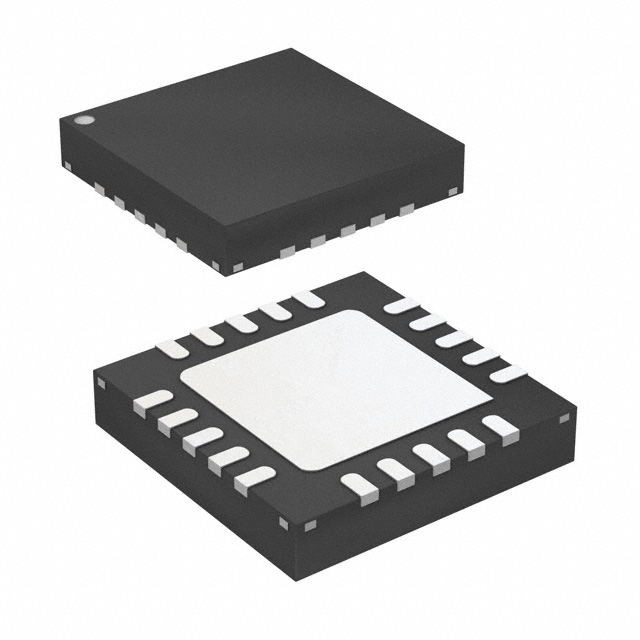

NCV59749MNADJTBG
IC REG LINEAR POS ADJ 3A 20QFNManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 20-QFN (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-VQFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 2 mA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 20-QFN (5x5) |
| Voltage - Output (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable, Power Good, Soft Start |
| Grade | Automotive |
| PSRR | 60dB ~ 30dB (1kHz ~ 300kHz) |
| Voltage Dropout (Max) | 0.28V @ 3A |
| Protection Features | Current Limit, Thermal Shutdown |
| Qualification | AEC-Q100 |
