NCV47821PAAJR2G
IC REG LIN POS ADJ 200MA 14TSSOPManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
Linear Voltage Regulator IC Positive Adjustable 2 Output 200mA 14-TSSOP-EP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

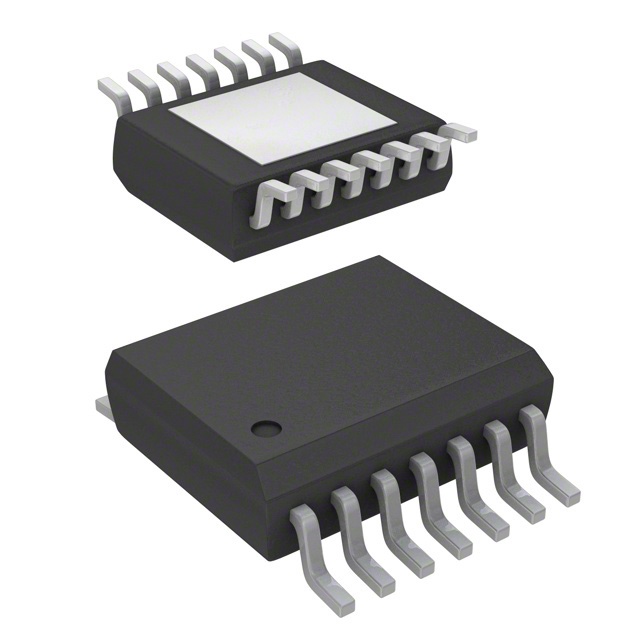

| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 200mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 mA |
| Voltage - Input (Max) | 45V |
| Number of Regulators | 2 |
| Supplier Device Package | 14-TSSOP-EP |
| Voltage - Output (Max) | 20V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| Grade | Automotive |
| PSRR | 75dB (100Hz) |
| Voltage Dropout (Max) | 0.5V @ 200mA |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 25 mA |
| Qualification | AEC-Q100 |
