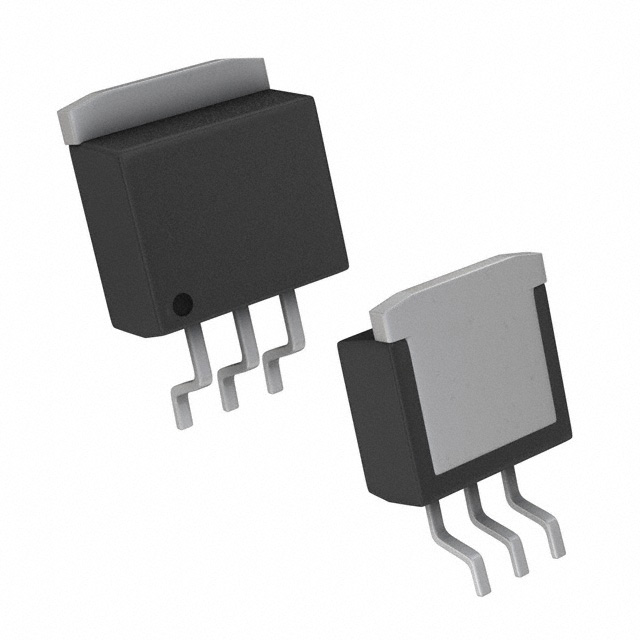

NCV4274ADS50R4G
IC REG LINEAR 5V 400MA D2PAKManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCV4274ADS50R4G is a positive, fixed output linear voltage regulator with a 5V output and 400mA current capability. This AEC-Q100 qualified device features a low dropout voltage of 0.5V at 250mA and an input voltage range up to 40V. Protection features include over temperature, reverse polarity, and short circuit protection. With a quiescent current of 250µA and a PSRR of 60dB at 100Hz, it is well-suited for automotive applications requiring stable power delivery. The NCV4274ADS50R4G is supplied in a D2PAK surface mount package, facilitating efficient board assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 400mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 250 µA |
| Voltage - Input (Max) | 40V |
| Number of Regulators | 1 |
| Supplier Device Package | D2PAK |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | - |
| Grade | Automotive |
| PSRR | 60dB (100Hz) |
| Voltage Dropout (Max) | 0.5V @ 250mA |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| Current - Supply (Max) | 35 mA |
| Qualification | AEC-Q100 |
