NCV4254CPDSTR2G
IC REG LINEAR POS ADJ 70MA 8SOICManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCV4254CPDSTR2G is a positive adjustable linear voltage regulator designed for automotive applications. This AEC-Q100 qualified component offers an output current of 70mA and features an enable pin for control. The device accepts an input voltage up to 45V and provides an adjustable output voltage ranging from 1V to 40V with a maximum dropout voltage of 0.4V at 70mA. Key protection features include current limiting. With a quiescent current of 80 µA and a supply current of up to 2 mA, it is suitable for power-sensitive designs. The NCV4254CPDSTR2G is supplied in an 8-SOIC-EP (Exposed Pad) package configured for surface mounting. This component finds application in automotive electronic systems requiring stable and adjustable voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

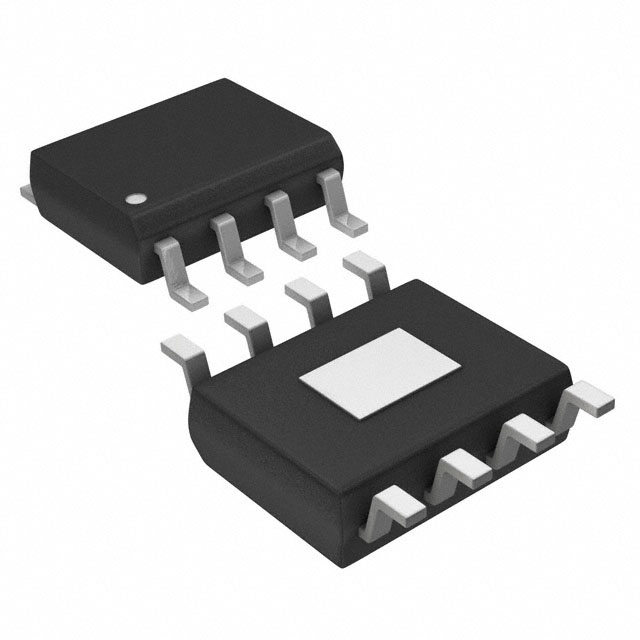

| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 70mA |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 80 µA |
| Voltage - Input (Max) | 45V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-SOIC-EP |
| Voltage - Output (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1V |
| Control Features | Enable |
| Grade | Automotive |
| PSRR | 60dB (100Hz) |
| Voltage Dropout (Max) | 0.4V @ 70mA |
| Protection Features | Current Limit |
| Current - Supply (Max) | 2 mA |
| Qualification | AEC-Q100 |
