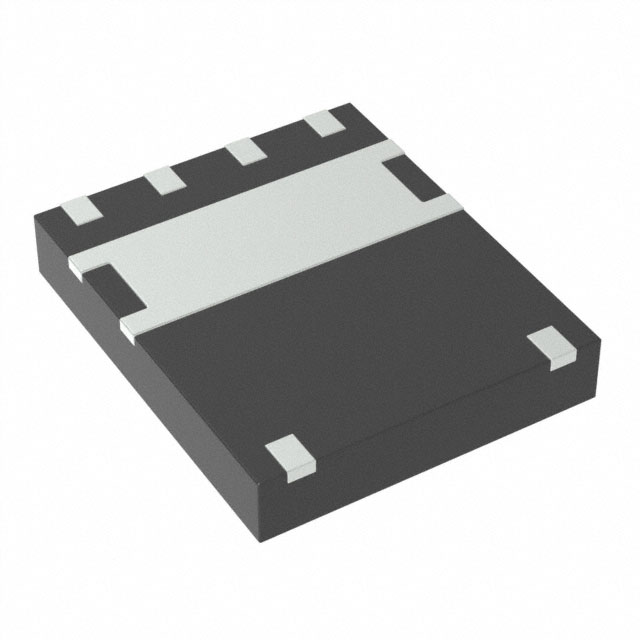

NCP786AMNADJTBG
IC REG LINEAR POS ADJ 11MA 6DFNManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCP786AMNADJTBG is a positive adjustable linear voltage regulator IC. This component offers a single output with an adjustable voltage range from 1.27V to 15V, capable of supplying up to 11mA of current. It features a low quiescent current of 15 µA and a supply current of 25 µA (max), making it suitable for power-sensitive applications. Protection features include over-current and over-temperature shutdown. The device boasts a high power supply rejection ratio (PSRR) of 65dB at 1kHz. Packaged in a 6-VDFN exposed pad (5x6), this surface-mount component is supplied on tape and reel. It operates across an ambient temperature range of -40°C to 85°C. Applications include industrial and consumer electronics requiring stable voltage regulation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 11mA |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 15 µA |
| Voltage - Input (Max) | 450V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-DFN (5x6) |
| Voltage - Output (Max) | 15V |
| Voltage - Output (Min/Fixed) | 1.27V |
| Control Features | - |
| PSRR | 65dB (1kHz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 25 µA |
