NCP694H25HT1G
IC REG LINEAR 2.5V 1A SOT89-5Manufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCP694H25HT1G is a fixed 2.5V linear voltage regulator IC capable of delivering up to 1A of output current. This device features a low dropout voltage of 0.32V at 1A, a quiescent current of 100 µA, and a high PSRR of 70dB at 1kHz. Protection features include over current and over temperature shutdown. The NCP694H25HT1G is supplied in a SOT-89-5 package and is suitable for surface mount applications. It finds utility in various industrial applications, including automotive and consumer electronics. The input voltage range supports up to 6V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

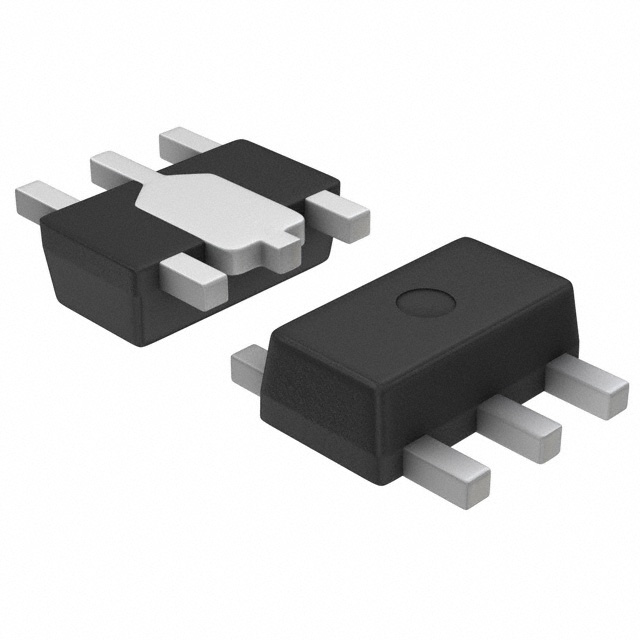

| Package / Case | SOT-89-5/6 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 100 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | SOT-89-5 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.5V |
| Control Features | Enable |
| PSRR | 70dB (1kHz) |
| Voltage Dropout (Max) | 0.32V @ 1A (Typ) |
| Protection Features | Over Current, Over Temperature |
