NCP694DSAN33T1G
IC REG LINEAR 3.3V 1A 6HSONManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

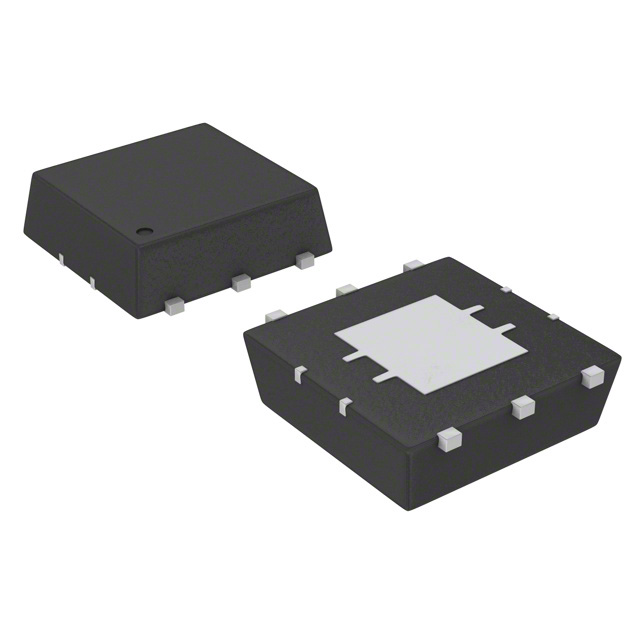

The onsemi NCP694DSAN33T1G is a fixed output voltage linear regulator designed for applications demanding stable 3.3V power. This component delivers a robust 1A output current with a low dropout voltage of just 0.18V at 1A, minimizing power dissipation. Key features include over-current and over-temperature protection for enhanced system reliability. The device operates with a quiescent current of 100 µA and boasts a high Power Supply Rejection Ratio (PSRR) of 70dB at 1kHz, making it suitable for noise-sensitive designs. Its 6-HSON (2.9x3) package with an exposed pad ensures efficient thermal management for surface mount applications. The NCP694DSAN33T1G is utilized across various industries, including automotive, industrial, and consumer electronics, where consistent voltage regulation is critical. It operates within a temperature range of -40°C to 85°C and accepts an input voltage up to 6V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-VQFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 100 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-HSON (2.9x3) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| PSRR | 70dB (1kHz) |
| Voltage Dropout (Max) | 0.18V @ 1A (Typ) |
| Protection Features | Over Current, Over Temperature |
