NCP693HMN08TCG
IC REG LINEAR 0.8V 1A 6UDFNManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCP693HMN08TCG is a high-performance, positive fixed output linear voltage regulator delivering 1A of current. Featuring a low quiescent current of 90 µA and an extremely low dropout voltage of 1.65V at 1A, this device is designed for power-sensitive applications. The regulator includes over-current and over-temperature protection for enhanced reliability. Its superior Power Supply Rejection Ratio (PSRR) of 70dB at 1kHz makes it suitable for noise-sensitive systems. The 6-UDFN (1.8x2) package is ideal for compact designs and is supplied on tape and reel. This component finds application in portable electronics, automotive systems, and industrial control. The input voltage range extends up to 6.5V, with a fixed output voltage of 0.8V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

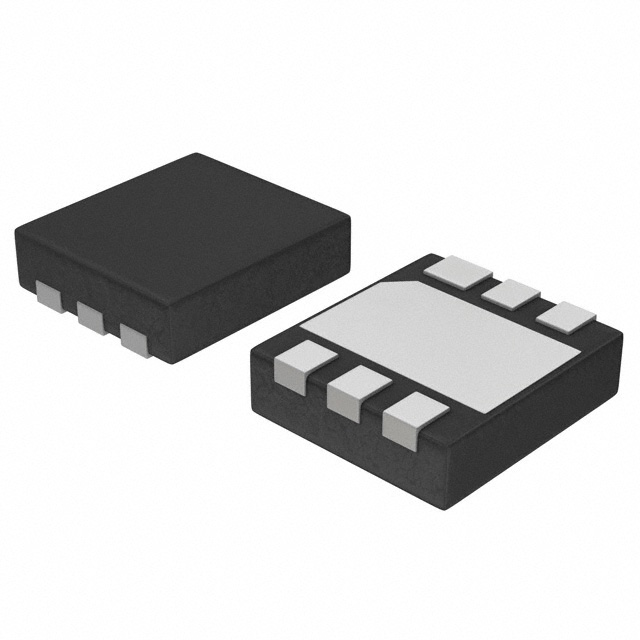

| Package / Case | 6-UFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 90 µA |
| Voltage - Input (Max) | 6.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-UDFN (1.8x2) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable |
| PSRR | 70dB (1kHz) |
| Voltage Dropout (Max) | 1.65V @ 1A |
| Protection Features | Over Current, Over Temperature |
