NCP629FC18T2G
IC REG LIN 1.8V 150MA 5FLIPCHIPManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

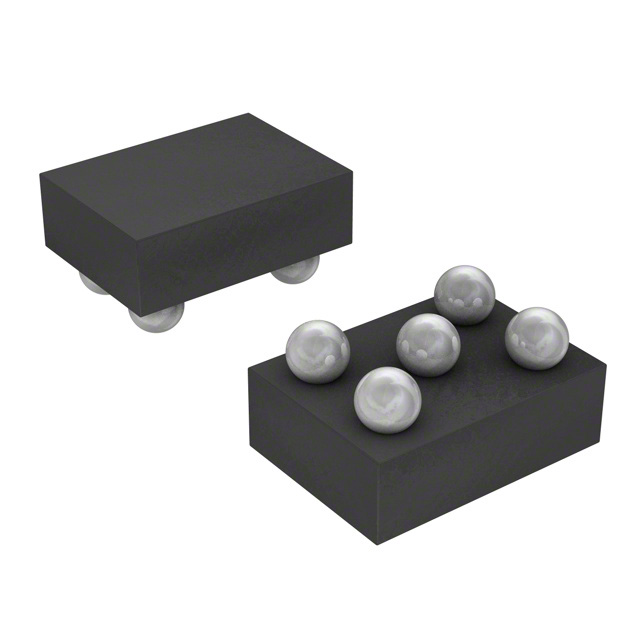

The onsemi NCP629FC18T2G is a positive fixed output linear voltage regulator. This component delivers a stable 1.8V output with a maximum current capability of 150mA. Featuring an ultra-low dropout voltage of 175mV at its full load, it is designed for power-sensitive applications. The device includes an enable pin for flexible power management and offers protection against over current and over temperature conditions. With a quiescent current of 175 µA, it is suitable for battery-powered devices. The NCP629FC18T2G is provided in a compact 5-FlipChip package, with a surface mount type and supplied on tape and reel. Its high power supply rejection ratio (PSRR) of up to 62dB at 120Hz makes it ideal for noise-sensitive applications in the automotive and industrial sectors. The operating temperature range is -40°C to 125°C, and the maximum input voltage is 6V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-UFBGA, FCBGA |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 175 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 5-FlipChip (1.028x1.19) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Control Features | Enable |
| PSRR | 62dB ~ 38dB (120Hz ~ 10kHz) |
| Voltage Dropout (Max) | 0.175V @ 150mA |
| Protection Features | Over Current, Over Temperature |
