NCP59800BMNADJTBG
IC REG LINEAR POS ADJ 1A 8DFNManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

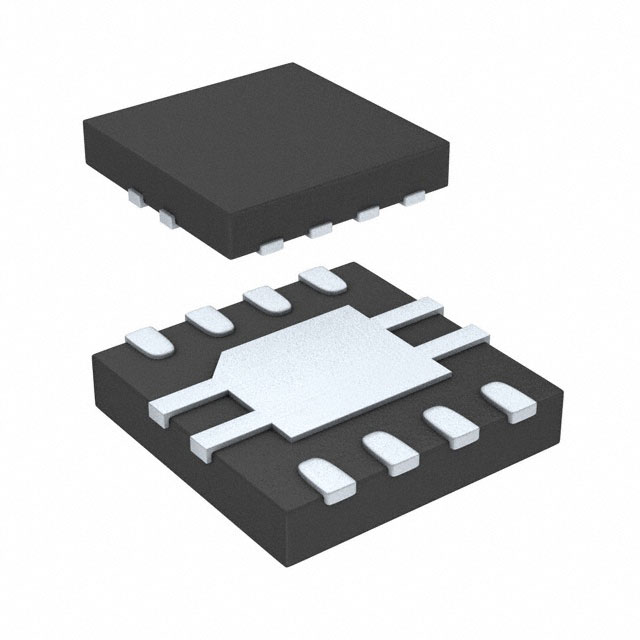

Linear Voltage Regulator IC Positive Adjustable 1 Output 1A 8-DFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VDFN Exposed Pad |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 450 µA |
| Voltage - Input (Max) | 6V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-DFN (3x3) |
| Voltage - Output (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable |
| PSRR | 77dB ~ 27dB (100Hz ~ 1MHz) |
| Voltage Dropout (Max) | 0.5V @ 1A |
| Protection Features | Over Current, Over Temperature |
