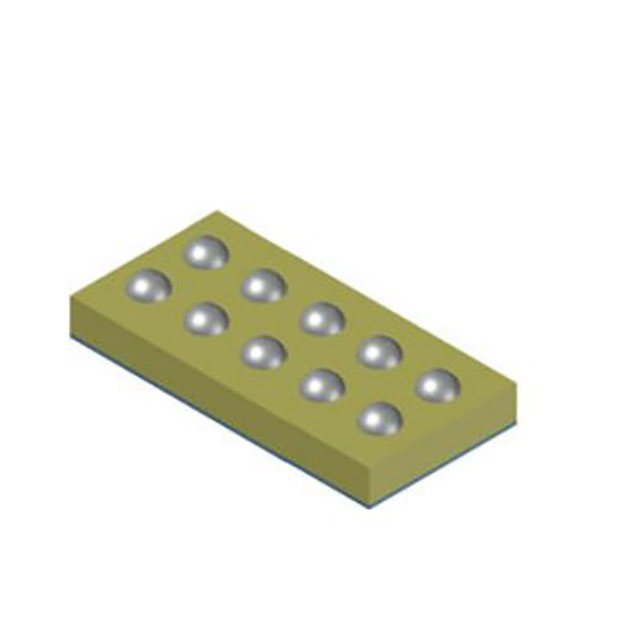

NCP59744FCTCADJT2G
IC REG LINEAR POS ADJ 3A 10WLCSPManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCP59744FCTCADJT2G is a high-performance positive adjustable linear voltage regulator IC. Designed for demanding applications, this device delivers a stable output voltage with a maximum output current of 3A. Key features include an adjustable output voltage ranging from 0.8V to 3.6V, with a maximum input voltage of 5.5V. The regulator offers a low dropout voltage of 1.5V at 3A, maximizing efficiency.
Control functionalities such as Enable, Power Good, and Soft Start are integrated, along with robust protection mechanisms including Over Current, Over Temperature, and Under Voltage Lockout (UVLO). The device exhibits excellent Power Supply Rejection Ratio (PSRR) performance, with values ranging from 72dB at 1kHz to 50dB at 1MHz. Packaged in a compact 10-WLCSP (2.08x1.03), the NCP59744FCTCADJT2G is suitable for surface mount applications and operates across a temperature range of -40°C to 125°C. This component finds utility in various industries including automotive, industrial, and consumer electronics where reliable power management is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-XFBGA, WLCSP |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 2 mA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 10-WLCSP (2.08x1.03) |
| Voltage - Output (Max) | 3.6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable, Power Good, Soft Start |
| PSRR | 72dB ~ 50dB (1kHz ~ 1MHz) |
| Voltage Dropout (Max) | 1.5V @ 3A |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Current - Supply (Max) | 2 mA |
