NCP508MT33TBG
IC REG LINEAR 3.3V 50MA 6WDFNManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCP508MT33TBG is a positive fixed output voltage linear regulator IC. This component provides a stable 3.3V output with a maximum current capability of 50mA. Featuring a low quiescent current of 1 µA, it is suitable for power-sensitive applications. The device operates from an input voltage range up to 7V and offers a typical dropout voltage of 0.18V at 50mA. Protection features include over-current and over-temperature shutdown. The NCP508MT33TBG is supplied in a compact 6-WDFN (1.5x1.5) package, designed for surface mounting. It is commonly employed in consumer electronics, industrial control systems, and battery-powered devices. The device offers a high Power Supply Rejection Ratio (PSRR) of 70dB at 1kHz.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

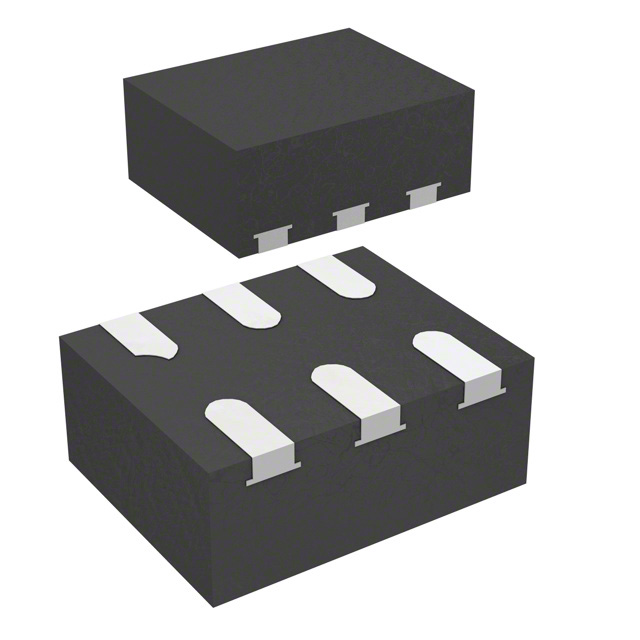

| Package / Case | 6-WFDFN |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 50mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 1 µA |
| Voltage - Input (Max) | 7V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-WDFN (1.5x1.5) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| PSRR | 70dB (1kHz) |
| Voltage Dropout (Max) | 0.18V @ 50mA (Typ) |
| Protection Features | Over Current, Over Temperature |
| Current - Supply (Max) | 1.9 mA |
