NCP4632DDTADJT5G
IC REG LINEAR POS ADJ 3A DPAK-5Manufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCP4632DDTADJT5G is a positive adjustable linear voltage regulator designed for high-current applications. This component delivers up to 3A output current with a low dropout voltage of 0.56V at 3A. It features an adjustable output from 0.8V to 4.5V, with a maximum input voltage of 5.25V. The NCP4632DDTADJT5G includes robust protection features such as over current, over temperature, reverse polarity, and soft start. Its high power supply rejection ratio (PSRR) of 55dB at 1kHz makes it suitable for noise-sensitive applications. The device operates from -40°C to 85°C and is supplied in a TO-252 (DPAK) surface-mount package, delivered on tape and reel. This regulator is commonly utilized in power management solutions across various industrial and consumer electronics sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

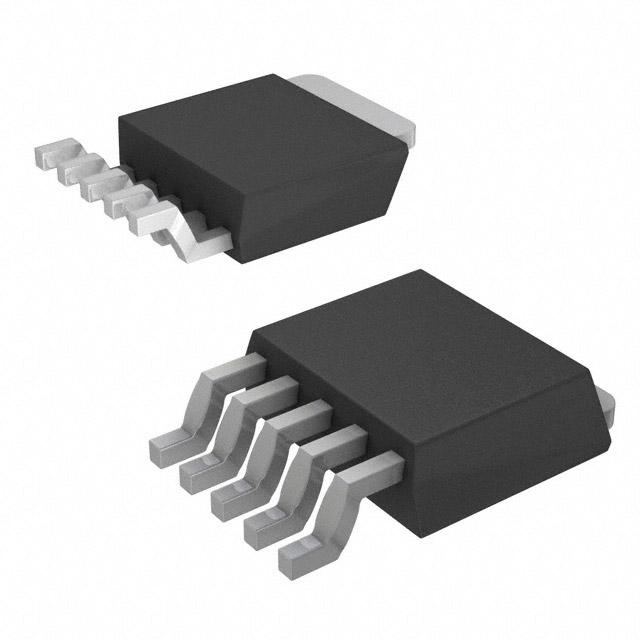

| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Current - Output | 3A |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 430 µA |
| Voltage - Input (Max) | 5.25V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-252 (DPAK) |
| Voltage - Output (Max) | 4.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Control Features | Enable |
| PSRR | 55dB (1kHz) |
| Voltage Dropout (Max) | 0.56V @ 3A |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Soft Start |
