NCP4626DMX033TCG
IC REG LINEAR 3.3V 300MA 6XDFNManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
onsemi NCP4626DMX033TCG is a positive fixed output linear voltage regulator. This device delivers a stable 3.3V output with a maximum current capability of 300mA. Featuring a low quiescent current of 100 µA, it is suitable for power-sensitive applications. The NCP4626DMX033TCG offers robust protection through integrated over-current, over-temperature, and short-circuit safeguards. It has an input voltage range up to 16V and a dropout voltage of 1V at 300mA. The regulator provides excellent power supply rejection ratio (PSRR) of 70dB at 1kHz, ensuring clean power delivery. The component is supplied in a compact 6-XDFN (1.6x1.6) surface-mount package, ideal for space-constrained designs. Its typical applications span automotive, industrial, and consumer electronics requiring reliable voltage regulation. The device includes an enable pin for output control.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

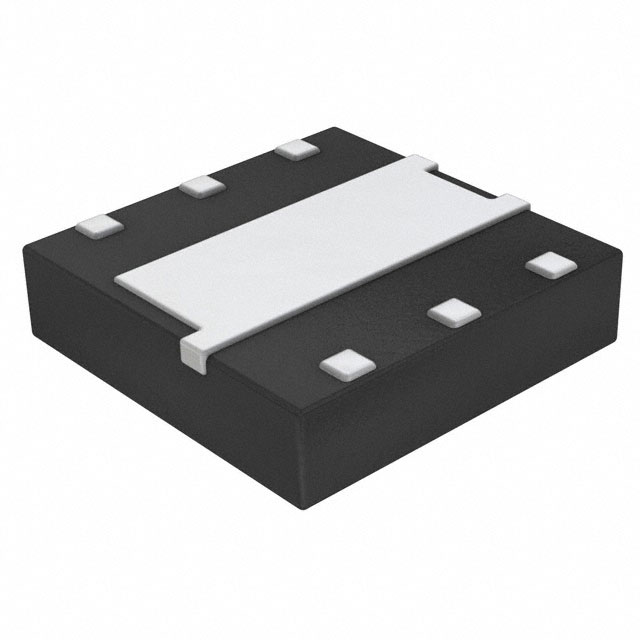

| Package / Case | 6-XFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 100 µA |
| Voltage - Input (Max) | 16V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-XDFN (1.6x1.6) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.3V |
| Control Features | Enable |
| PSRR | 70dB (1kHz) |
| Voltage Dropout (Max) | 1V @ 300mA |
| Protection Features | Over Current, Over Temperature, Short Circuit |
