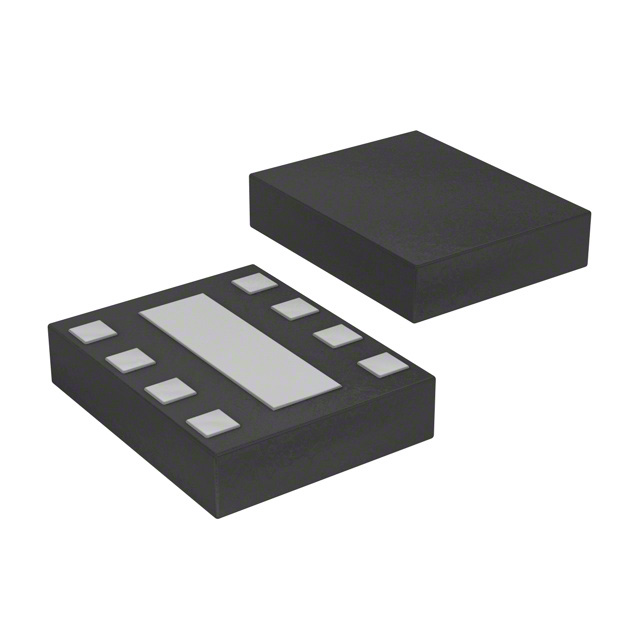

NCP186BMX350TAG
IC REG LINEAR 3.5V 1A 8XDFNManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCP186BMX350TAG is a positive fixed output linear voltage regulator IC. This component delivers a stable 3.5V output with a maximum current capability of 1A. Designed for efficient operation, it features a low quiescent current of 140 µA. The device offers robust protection mechanisms including over current, over temperature, and soft start. Its high power supply rejection ratio (PSRR) of 75dB at 1kHz ensures minimal noise on the output. The NCP186BMX350TAG operates over a temperature range of -40°C to 125°C and accepts an input voltage up to 5.5V. The low dropout voltage of 0.135V at 1A makes it suitable for power-sensitive applications. This regulator is housed in an 8-XDFN (1.6x1.2) exposed pad package and is supplied on tape and reel. It finds application in various industries including automotive, industrial, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 140 µA |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 8-XDFN (1.6x1.2) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 3.5V |
| Control Features | Enable |
| PSRR | 75dB (1kHz) |
| Voltage Dropout (Max) | 0.135V @ 1A |
| Protection Features | Over Current, Over Temperature, Soft Start |
