NCP139AFCT180T2G
IC REG LINEAR 1.8V 1A 6WLCSPManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCP139AFCT180T2G is a fixed output voltage linear regulator with an output voltage of 1.8V and a maximum output current of 1A. This device features a low dropout voltage of 1.5V at 1A and offers a Power Supply Rejection Ratio (PSRR) ranging from 85dB to 70dB at 1kHz. The NCP139AFCT180T2G includes an Enable pin for control and Under Voltage Lockout (UVLO) protection. It is supplied in a 6-WLCSP (1.2x0.8) package and is available on tape and reel. This component is suitable for applications in consumer electronics and industrial automation. The maximum input voltage is 5.5V, and it operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

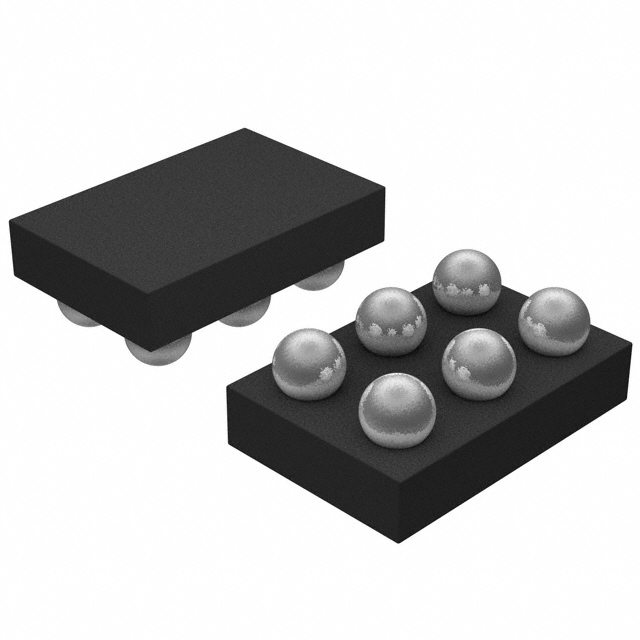

| Package / Case | 6-XFBGA, WLCSP |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-WLCSP (1.2x0.8) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.8V |
| Control Features | Enable |
| PSRR | 85dB ~ 70dB (1kHz) |
| Voltage Dropout (Max) | 1.5V @ 1A |
| Protection Features | Under Voltage Lockout (UVLO) |
