NCP130AMX105TCG
IC REG LINEAR 1.05V 300MA 6XDFNManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

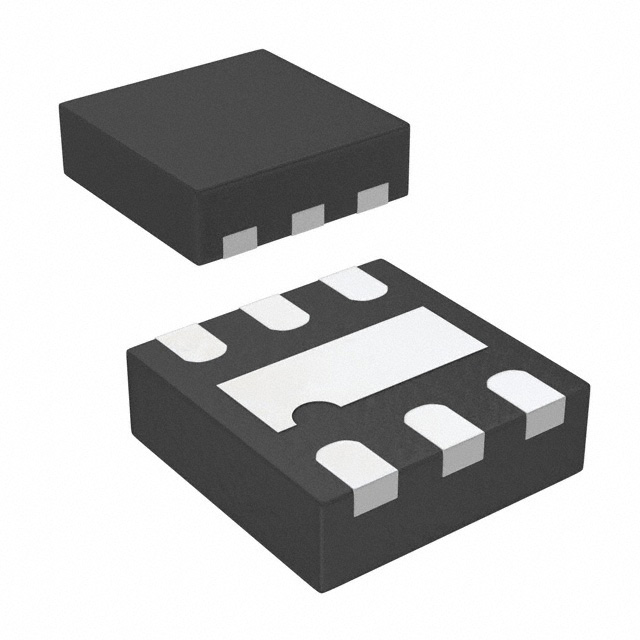

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 6-XDFN (1.2x1.2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 300mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Positive |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-XDFN (1.2x1.2) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.05V |
| Control Features | Enable |
| PSRR | 80dB ~ 65dB (1kHz) |
| Voltage Dropout (Max) | 0.15V @ 300mA |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
