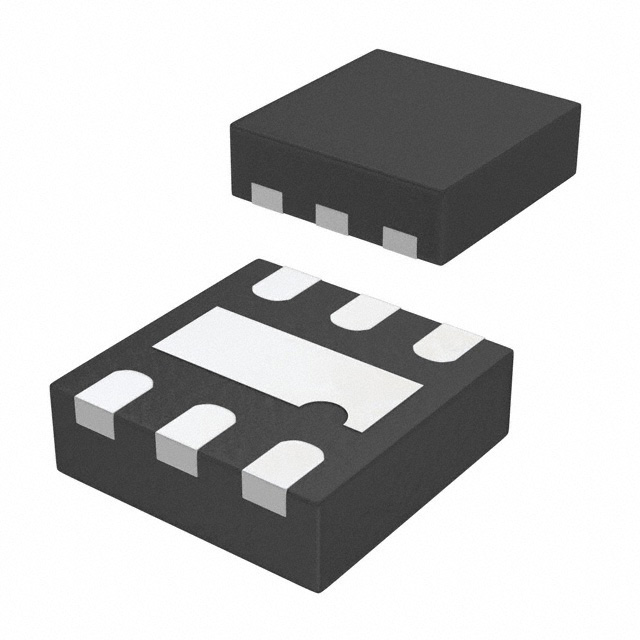

NCP120BMX105TCG
IC REG LINEAR 1.05V 150MA 6XDFNManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCP120BMX105TCG is a positive fixed output linear voltage regulator. This device delivers a stable 1.05V output with a maximum current capability of 150mA. Featuring a low dropout voltage of 75mV at 150mA, it is designed for efficiency in power-sensitive applications. The NCP120BMX105TCG incorporates overcurrent, overtemperature, and undervoltage lockout (UVLO) protection features for robust operation. Its high power supply rejection ratio (PSRR) of up to 80dB at 1kHz ensures excellent noise filtering. This component is provided in a compact 6-XDFN (1.2x1.2) surface-mount package, suitable for high-density designs. It finds application in various sectors including consumer electronics, industrial automation, and automotive systems where reliable voltage regulation is critical. The device operates within a temperature range of -40°C to 85°C and supports an input voltage up to 5.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN Exposed Pad |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -40°C ~ 85°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 5.5V |
| Number of Regulators | 1 |
| Supplier Device Package | 6-XDFN (1.2x1.2) |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.05V |
| Control Features | Enable |
| PSRR | 80dB ~ 70dB (1kHz) |
| Voltage Dropout (Max) | 0.075V @ 150mA |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
