NCP1117DT285G

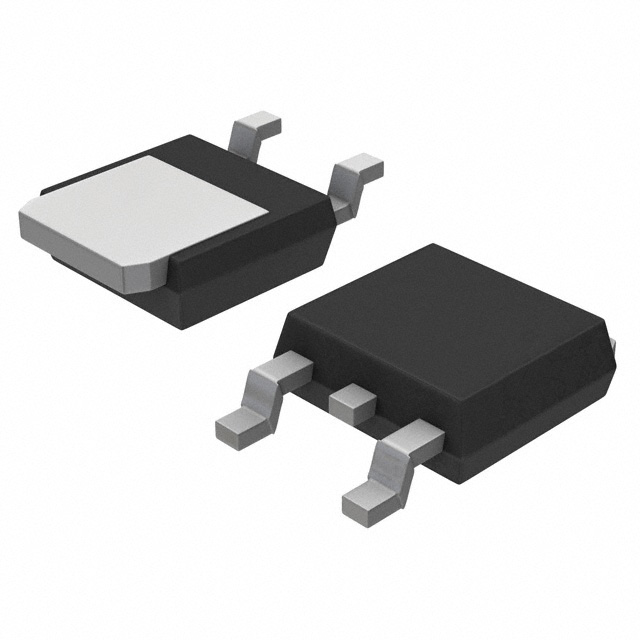

IC REG LINEAR 2.85V 1A DPAKManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi NCP1117DT285G is a positive fixed linear voltage regulator with a 2.85V output and a 1A current capability. This device features over-current and over-temperature protection, and a typical quiescent current of 10mA. Designed for surface mount applications, it is supplied in a DPAK (TO-252-3) package. The regulator offers a dropout voltage of 1.2V at 800mA and boasts a Power Supply Rejection Ratio (PSRR) of 68dB at 120Hz. Its operating temperature range is from 0°C to 125°C, with a maximum input voltage of 20V. This component is commonly utilized in power management for telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 1A |
| Operating Temperature | 0°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 10 mA |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | DPAK |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 2.85V |
| Control Features | - |
| PSRR | 68dB (120Hz) |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Protection Features | Over Current, Over Temperature |
