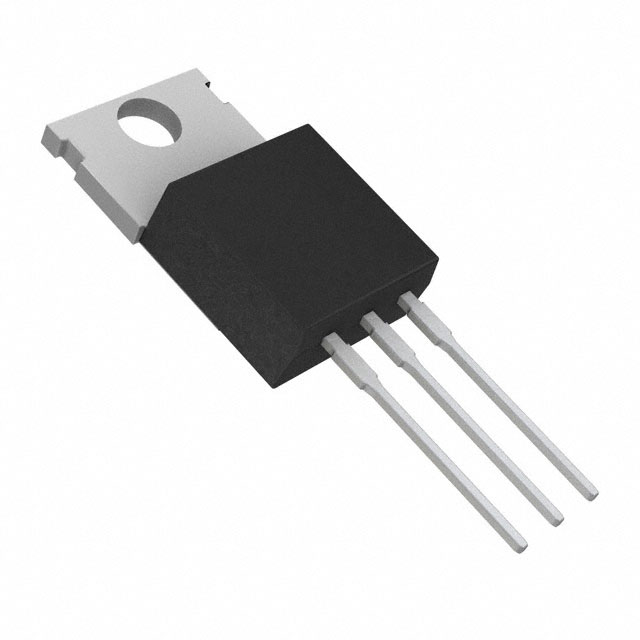

MC7809BTG
IC REG LINEAR 9V 1A TO220ABManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi MC7809BTG is a positive fixed 9V linear voltage regulator IC. Delivering a stable 1A output current, this TO-220AB packaged component features over-temperature and short-circuit protection. With a maximum input voltage of 35V, it offers a typical dropout voltage of 2V at 1A. The device exhibits a Power Supply Rejection Ratio (PSRR) of 61dB at 120Hz and operates across a temperature range of -40°C to 125°C. This through-hole mounted regulator is suitable for applications in industrial automation, consumer electronics, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-220-3 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Output Configuration | Positive |
| Current - Quiescent (Iq) | 8 mA |
| Voltage - Input (Max) | 35V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220 |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 9V |
| Control Features | - |
| PSRR | 61dB (120Hz) |
| Voltage Dropout (Max) | 2V @ 1A (Typ) |
| Protection Features | Over Temperature, Short Circuit |
