L78MR05-E
IC REG LINEAR 5V 500MA TO220-5HManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More

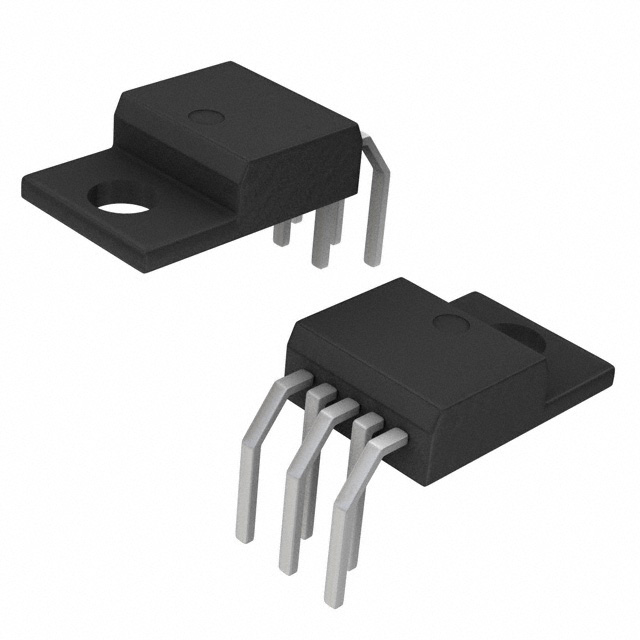

The onsemi L78MR05-E is a positive fixed 5V linear voltage regulator IC designed for applications requiring stable power delivery. This component offers a robust solution with an output current capability of 500mA and an input voltage range up to 20V. Key features include over-current and over-temperature protection, ensuring device reliability. The integrated reset function adds an important control parameter for system management. With a typical PSRR of 80dB at 120Hz, it effectively filters out power supply noise. The L78MR05-E is housed in a TO-220-5H package with formed leads, suitable for through-hole mounting. This robust regulator is commonly utilized in industrial, automotive, and consumer electronics sectors where dependable voltage regulation is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-220-5 Formed Leads |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Current - Output | 500mA |
| Operating Temperature | -30°C ~ 80°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | TO-220-5H |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Reset |
| PSRR | 80dB ~ 77db (120Hz) |
| Voltage Dropout (Max) | - |
| Protection Features | Over Current, Over Temperature |
