L78LR05D-MA-E
IC REG LINEAR 5V 150MA TP5HFAManufacturer: onsemi
Categories: Linear, Low Drop Out (LDO) Regulators
Quality Control: Learn More
The onsemi L78LR05D-MA-E is a positive fixed output linear voltage regulator IC. This component provides a stable 5V output with a maximum current capability of 150mA. Featuring a low dropout voltage of 2.2V at 40mA, it is designed for efficient power regulation. The device includes over-current and over-temperature protection for enhanced reliability. Its high power supply rejection ratio (PSRR) of 79dB at 120Hz makes it suitable for noise-sensitive applications. The L78LR05D-MA-E is packaged in a TO-252-5, DPAK surface-mount form factor and is supplied in bulk. This regulator is utilized in various industrial applications, including consumer electronics and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |

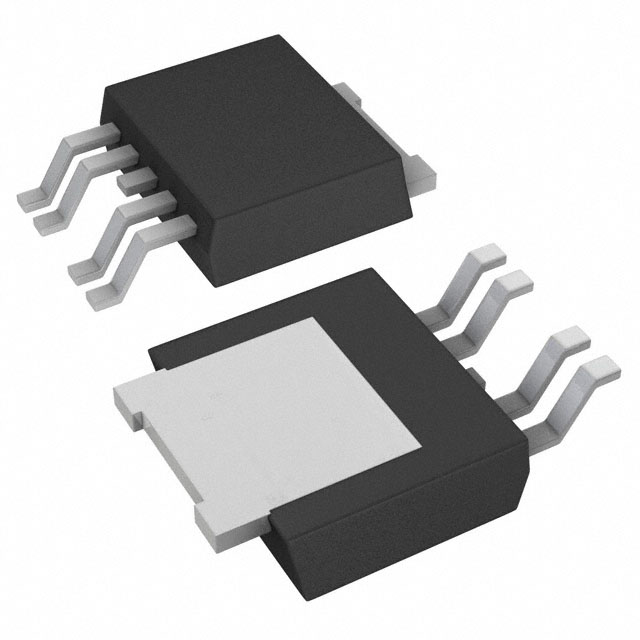

| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Current - Output | 150mA |
| Operating Temperature | -30°C ~ 80°C |
| Output Configuration | Positive |
| Voltage - Input (Max) | 20V |
| Number of Regulators | 1 |
| Supplier Device Package | TP5HFA |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 5V |
| Control Features | Reset |
| PSRR | 79dB (120Hz) |
| Voltage Dropout (Max) | 2.2V @ 40mA |
| Protection Features | Over Current, Over Temperature |
